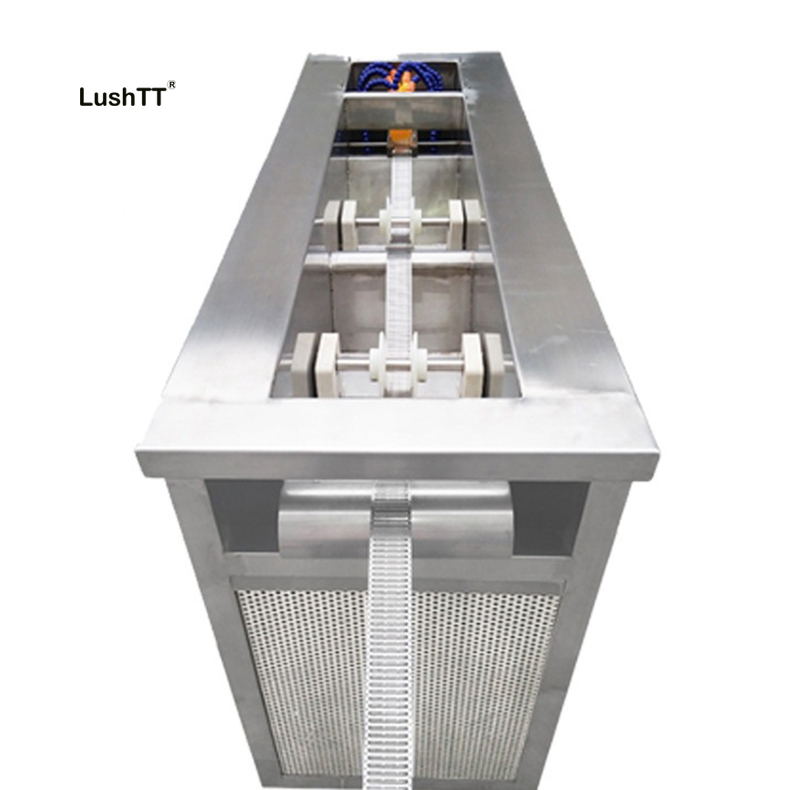

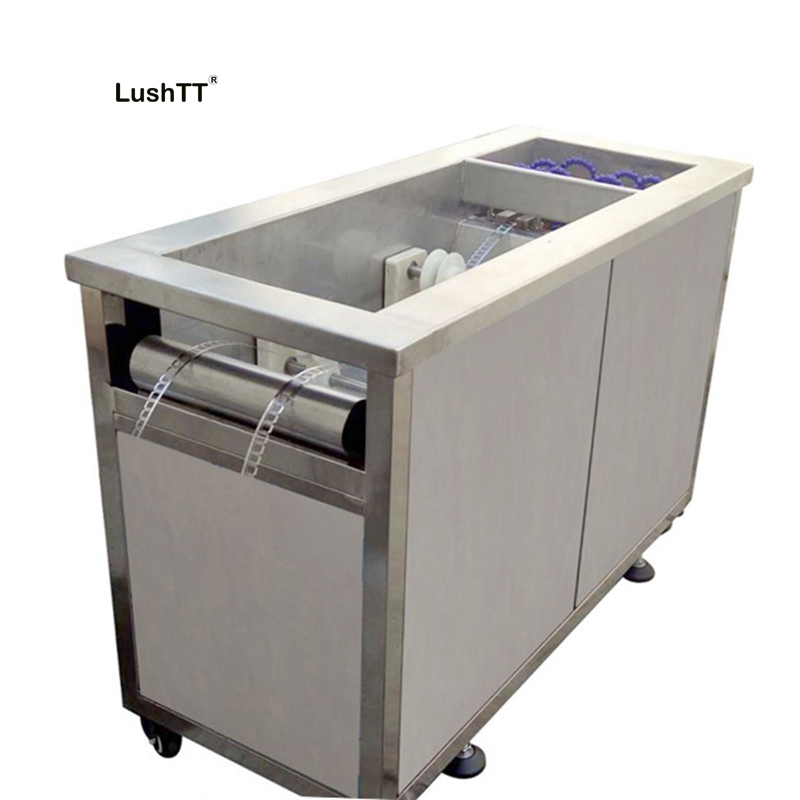

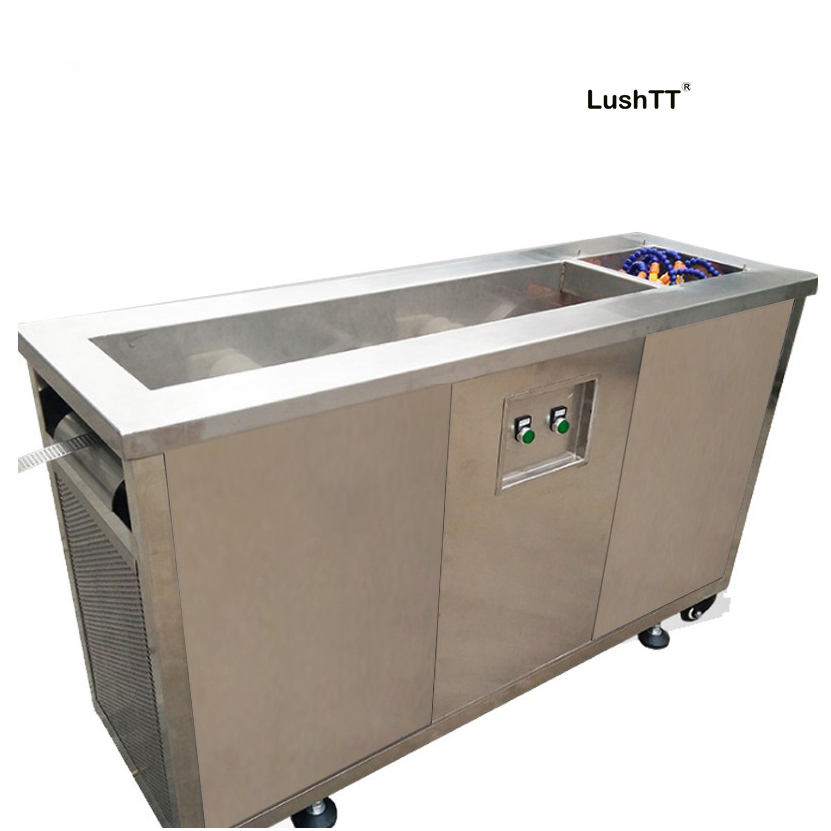

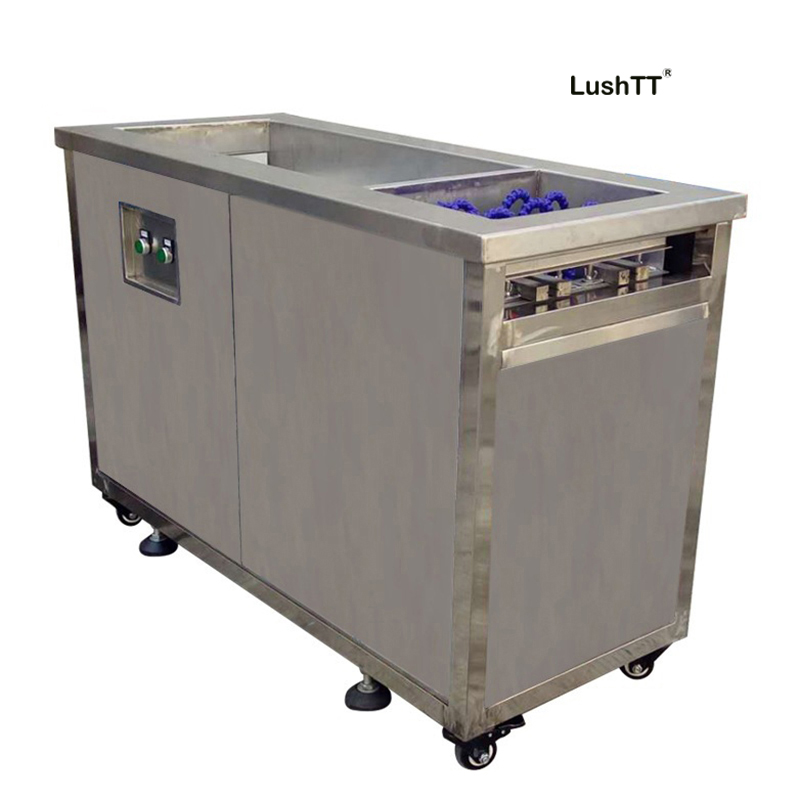

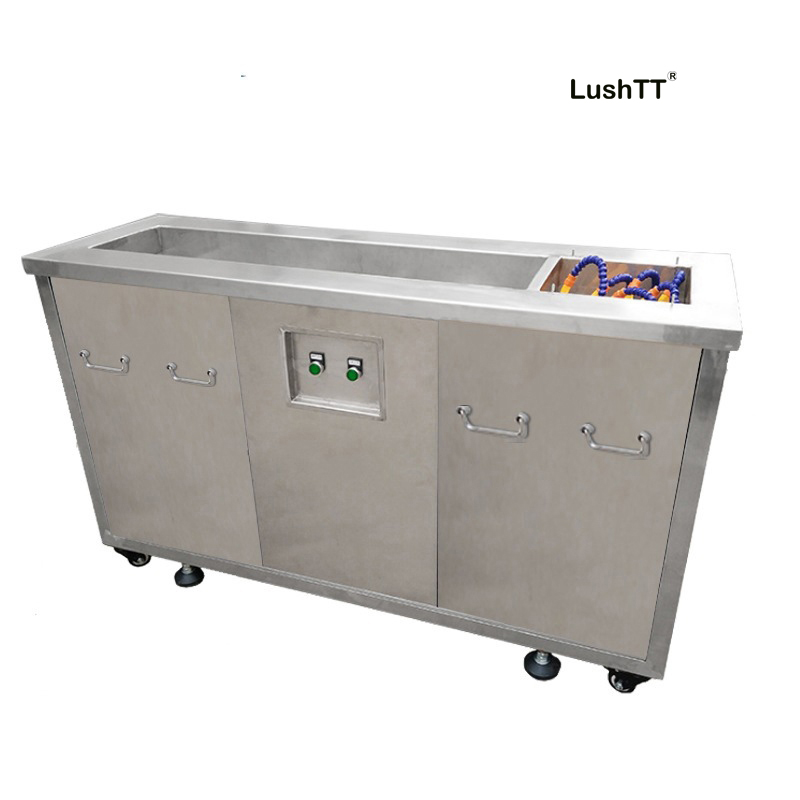

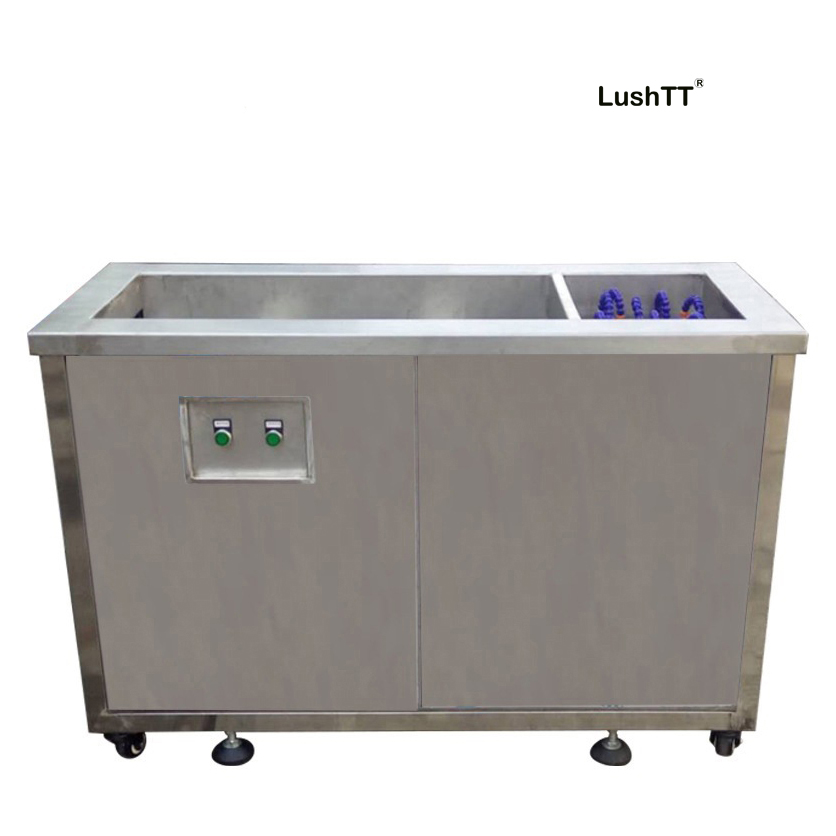

Ultrasonic Cleaning Machine Industrial Automatic Conveyor Mesh Belt Through-type
Original price was: $6,900.00.$5,800.00Current price is: $5,800.00.
1. Industrial cleaning (decontamination, oil removal, rust removal, wax removal), no damage to the product, automatic cleaning, penetrable cleaning (product structure is complex can also be easily cleaned), high cleaning efficiency, good effect.
2. Mainly for the material belt cleaning, the material belt through the cleaning machine decontamination, oil removal, rust, wax removal, can do automatic receiving and discharging, but also docking automated production equipment to clean the material belt molding processing.
3. Unit Size: L960*W770*H800mm, tank Size: L800*W600*H550mm, the tank body is made of SUS304 T2.0 steel. We can customize the size, material and construction as per users’ specific requirements to meet the actual needs.
4. Ultrasonic system: 60pcs of ultrasonic transducers are installed evenly at the bottom of the tank body. Ultrasonic Power 3000W. Frequency: 28KHZ or 40KHZ, equipped with a set of independent ultrasonic generators. Can customize 68khz / 80khz / 120khz.
5. Mechanical knob control, easy to operate. Heating power is 9KW.
6. Voltage: 220V 1 phase, or 380V / 415V, 3 phases.
7. Packing: 1 unit / wooden case.
Need some help?
Contact Us
Ultrasonic Cleaning Machine Industrial Automatic Conveyor Mesh Belt Through-type
What are the characteristics of the mesh belt ultrasonic cleaning machine?
1. Efficient cleaning: Ultrasonic cleaning technology can effectively remove dirt, grease, and particles from the surface and tiny pores of the tape by the action of microbubbles generated by ultrasonic vibration in the liquid, achieving efficient cleaning.
2. Non-contact cleaning: During the cleaning process, ultrasonic waves are transmitted to the surface of the tape through the liquid, achieving non-contact cleaning, avoiding physical friction and damage, and protecting the integrity of the tape.
3. Versatility: Ultrasonic cleaning machines usually have multiple cleaning modes and parameter settings, which can be adjusted according to different cleaning requirements and types of tapes, providing more cleaning options.
4. Automated control: Most ultrasonic cleaning machines are equipped with automated control systems, enabling automatic loading, cleaning, drying, and unloading, improving production efficiency and reducing labor costs.
5. Environmentally friendly and energy-saving: Some ultrasonic cleaning machines use environmentally friendly cleaning agents, and the cleaning solution can be recycled, reducing environmental pollution and saving resources and costs.
6. Precise cleaning: Ultrasonic cleaning technology can achieve a cleaning effect at the micron level, thoroughly removing tiny dirt and particles, ensuring the cleanliness and quality of the tape surface.
7. High reliability: High-quality ultrasonic cleaning machines are made of corrosion-resistant and wear-resistant materials, with a long service life and stable performance, high reliability, suitable for long-term industrial production use.
These features make the tape ultrasonic cleaning machine one of the preferred equipment for cleaning tapes in the electronics manufacturing and other industries, meeting the demand for high-quality and efficient cleaning.
Please contact us via e-mail joannefu@lushtreestech.com to learn about our full scale capabilities to satisfy your application.
Additional information
| Weight | 200 kg |
|---|---|
| Dimensions | 115 × 90 × 100 cm |
