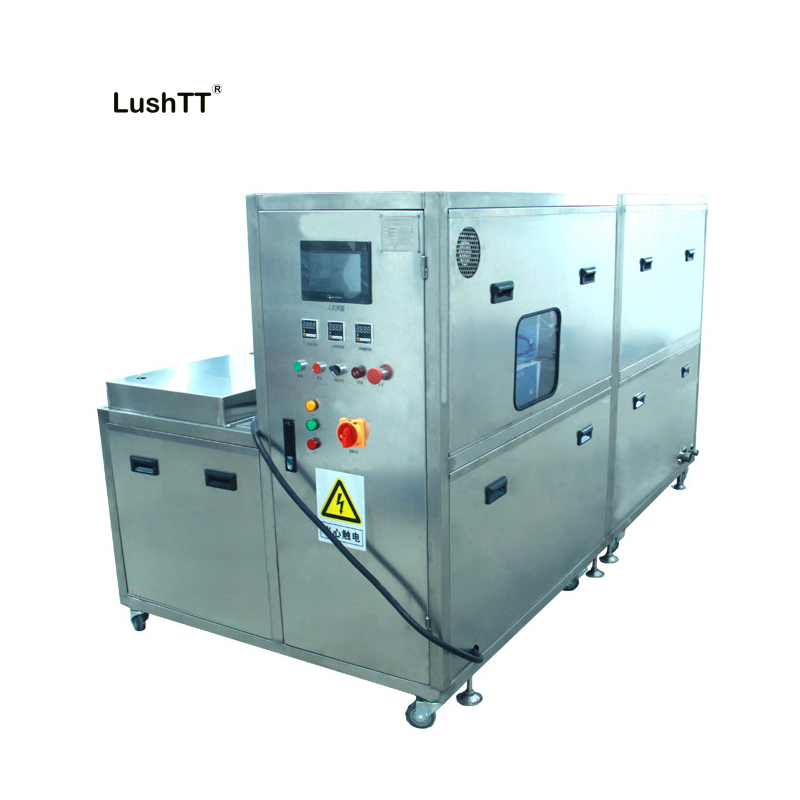

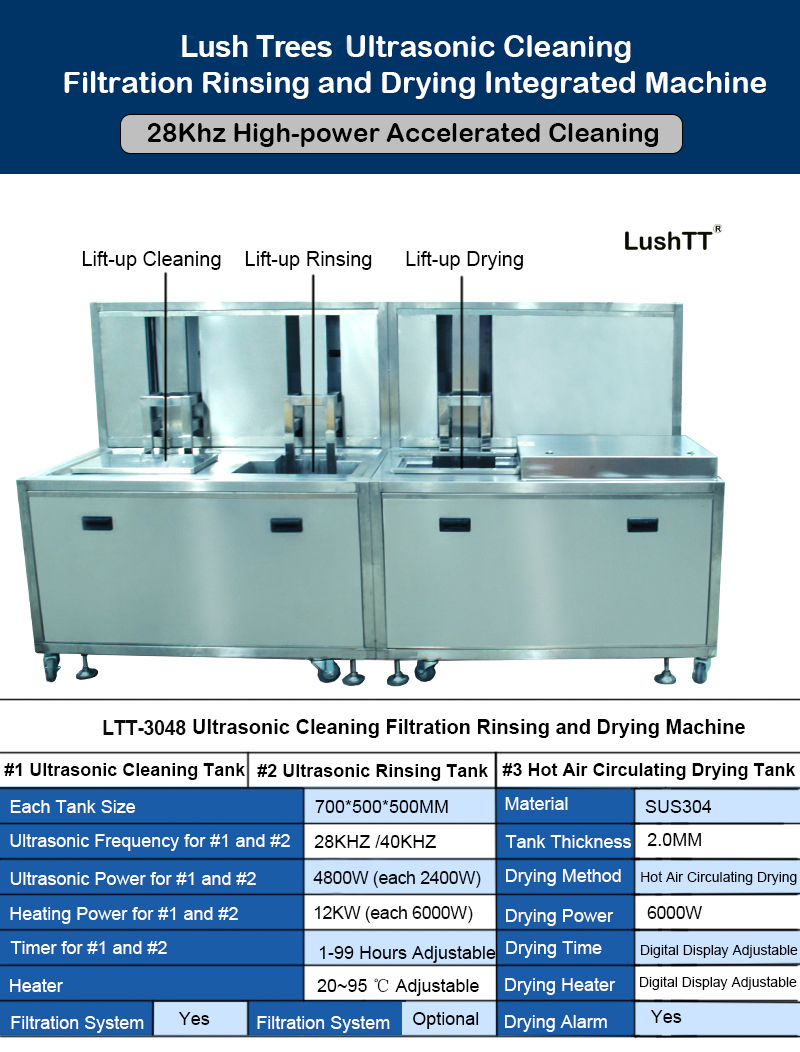

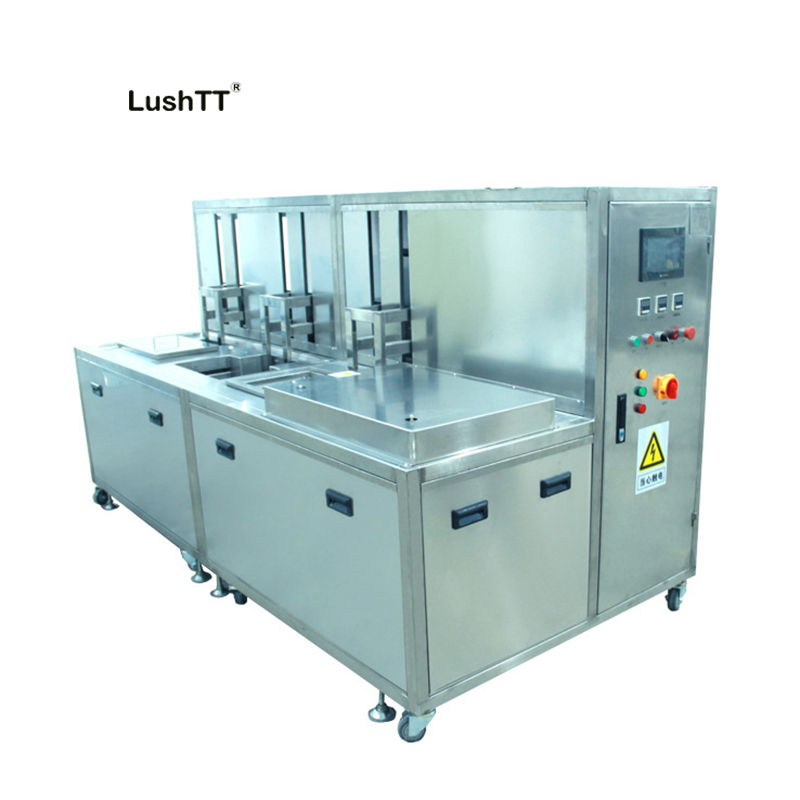

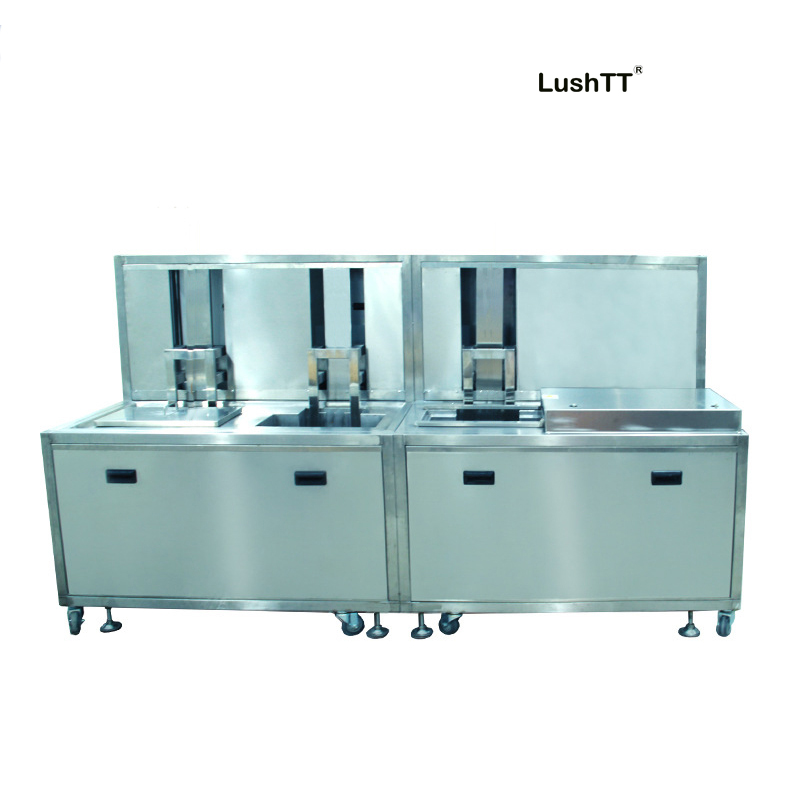

Ultrasonic Cleaning Machine 175L Three Baths with Rinsing Drying Lifting System
Original price was: $12,900.00.$11,500.00Current price is: $11,500.00.
1. Tank material: Stainless Steel SUS304 or 316L. Tank size: 700*500*500mm. Tank capacity: 175L. Can customize any size such as 38L / 45L / 53L / 61L / 77L / 88L / 96L / 99L / 108L / 135L / 175L / 264L / 360L / 650L / 560L / 960L / 1024L, etc. We can customize the material, size and construction as per user’s actual specific needs.
2. Ultrasonic power: 2400W (max. input 2880W, max. output 2400W) for each 1st and 2nd tank, total 4800W. Transducer quantity of each tank: 48pcs, total 96pcs.
3. Ultrasonic frequency: 28khz or 40khz, can customize 68khz / 80khz / 120khz. The bigger frequency suits the more precision work pieces.
4. Control: seperate ultrasonic generators and user-friendly operation interface. With copied and electric user manual as well as video guidance to guide user to operate.
5. Lift and Filter: The lifting system can lift the basket with workpieces up and down, the filter system can improve the cleaning effect.
6. Optional: pneumatic lift, rinsing tank, drying tank etc.
7. Function: industrial ultrasonic cleaning with filtering, lifting and drying system.
8. Voltage: 380V or 415V, 3 phases.
9. Packing: 1 unit / wooden case.
Need some help?
Contact Us
Lush Trees Tech Ultrasonic Cleaning Machine 175L Three Baths with Rinsing Drying Lifting System
1. Lifting system: The equipment is equipped with lifting system, using cylinder and linear guide rail to ensure smooth lifting.
2. Ultrasonic: the 1st and 2nd tank ultrasonic system, transducer wall-mounted installation mode, evenly arranged at the bottom of the equipment. Each tank ultrasonic power 2400W (max. input 2880W, max. output 2400W), total 4800W. Frequency 40KHZ, equipped with independent generator control, power adjustable.
3. Heating system: the 1st and 2nd tank adopts cast aluminum wall-mounted heating plate, each heating power 6KW. In total 12KW.
4. Air heating tube, heating power 6KW, equipped with high pressure fan internal circulation mode drying, digital temperature display.
5. The degree controller controls the heating temperature, equipped with a pneumatic door cover, and is driven by a cylinder.
6. Circulating filtration system: the 1st tank adopts CHL series stainless steel centrifugal pump + stainless steel 10" filter, circulating pressure flow. The amount is adjustable.
Additional information
| Weight | 680 kg |
|---|---|
| Dimensions | 320 × 155 × 180 cm |
