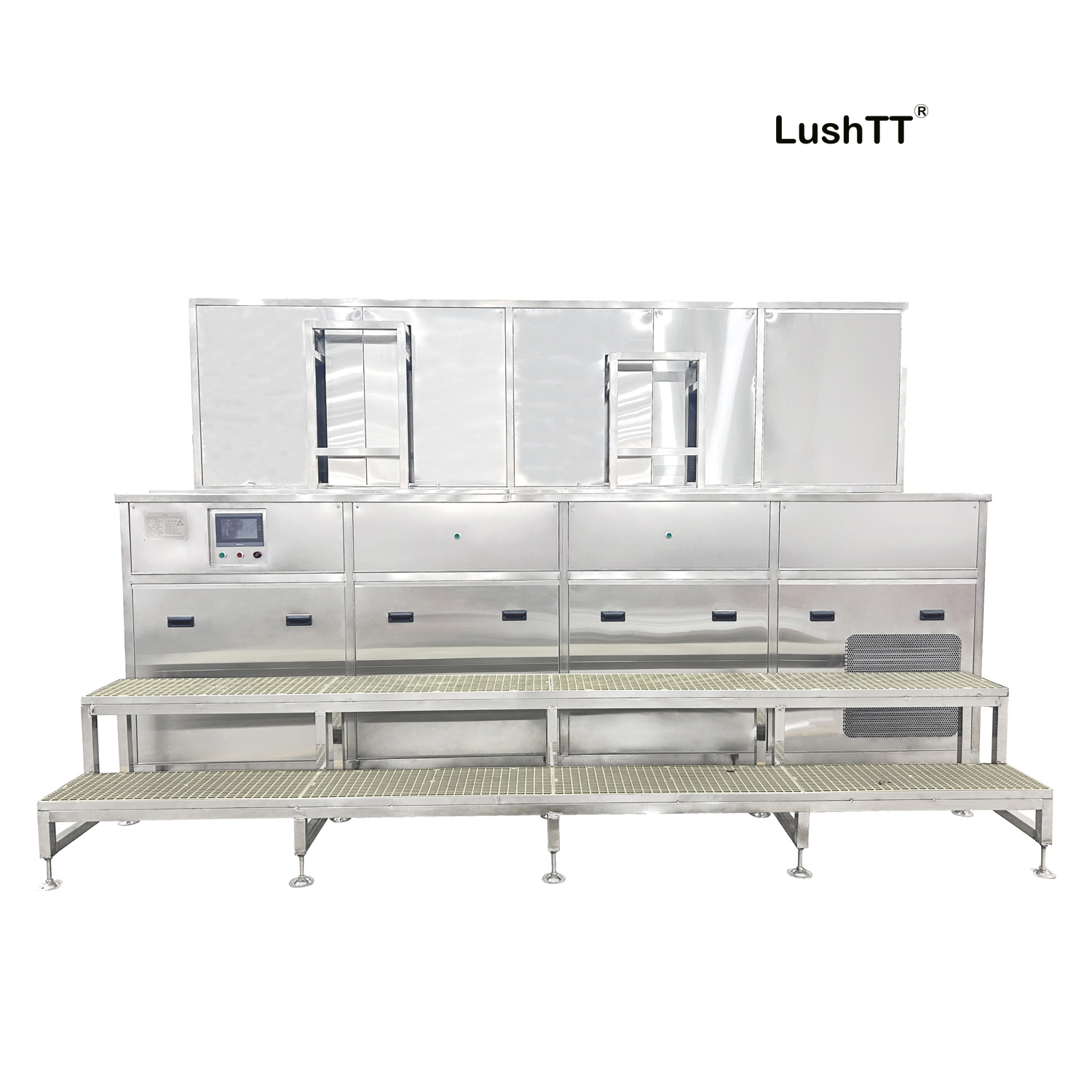

Ultrasonic Cleaner with Vapor Phase Cooling and Lifting System Two Tanks 375L
Original price was: $22,800.00.$18,000.00Current price is: $18,000.00.
1): Overall machine size: L4100*W1200*H2000MM, tank size: L1500*W500*H500MM, lifting valid working size: 1440*440mm. 2): Tank material SUS316L T=2.0mm, housing 40*40*2.0 SUS304, drainage 1.5” manual ball valve, inlet 1” manual ball valve, with filteration and recycling system for the 1st working tank.
3): Lifting system: adopt SC100-500 air cylinder and linear guide rail to ensure smooth lifting for 1# and 2# working tanks.
4):Ultrasonic: 1# tank with ultrasonic function, install transducers at the bottom of the working tank evenly, total ultrasonic power 3600W, frequency is 28khz or 40khz, with 2 ultrasonic generators.
5): Heating system: a 9KW cast aluminum alloy heating plate is installed on the side wall of each 1# and 2# working tank. And a digital temperature controller controls the heating temperature.
6): Cooling system: the equipment is equipped with a set of refrigeration coils, a set of 7HP air-cooled refrigeration unit, American valley wheel brand compressor, cooling fan and refrigerant storage tank.
7): Control box: The internal electrical components are made of internationally renowned brands, using PLC to control the automation of the whole machine. The control program can be written, and the corresponding program can be set according to the production process during operation. The control panel is equipped with touch-screen, the user-friendly control interface is easy to operate.
8): The liquid will be used to improve the cleaning effect, must consult with ultrasonic cleaner manufacturer whether it is proper to use for safety concern before using.
Need some help?
Contact Us

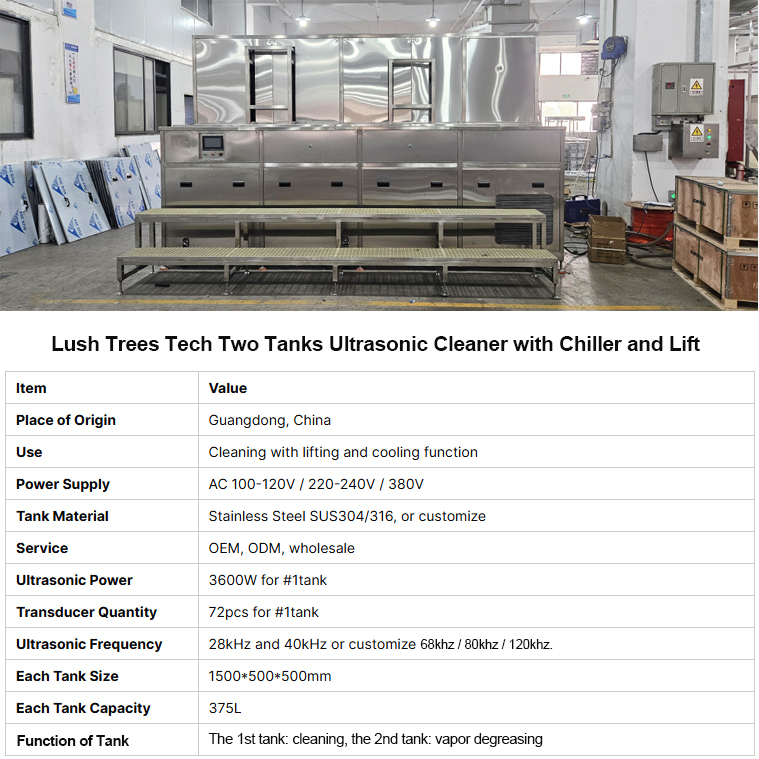

Lush Trees Tech Ultrasonic Cleaner with Vapor Phase Cooling and Lifting System Two Tanks 375L
1. The whole machine structure: using high quality stainless steel SUS304 or SUS316L stainless steel welding, no water leakage, the welding place is polished.
2. Transducer: imported piezoelectric ceramic chip, can adapt to different temperatures for long time work; imported bonding technology, to ensure that the transducers can work for long time without falling off.
3. Ultrasonic generator: adopt the international leading technology, adopt IGBT module, SCM technology, stable working condition, bigger and stronger output power. There are over-voltage, over-current, output short circuit and other protective measures.
4. Electrical system: the use of PLC Human Interface Touch control technology, all levels of independent circuit, can be independently controlled by various parameters of the slot.
5. Freezing system: The machine adopts two-stage freezing system, the first layer is the freezing zone, connected with the freezing system. Another layerisfor the cold water frozen zone, access to cold water frozen. Equipped with chiller and cooler 1 set each, multi-stage working shares these refrigeration system.
Additional information
| Weight | 800 kg |
|---|---|
| Dimensions | 430 × 130 × 220 cm |
