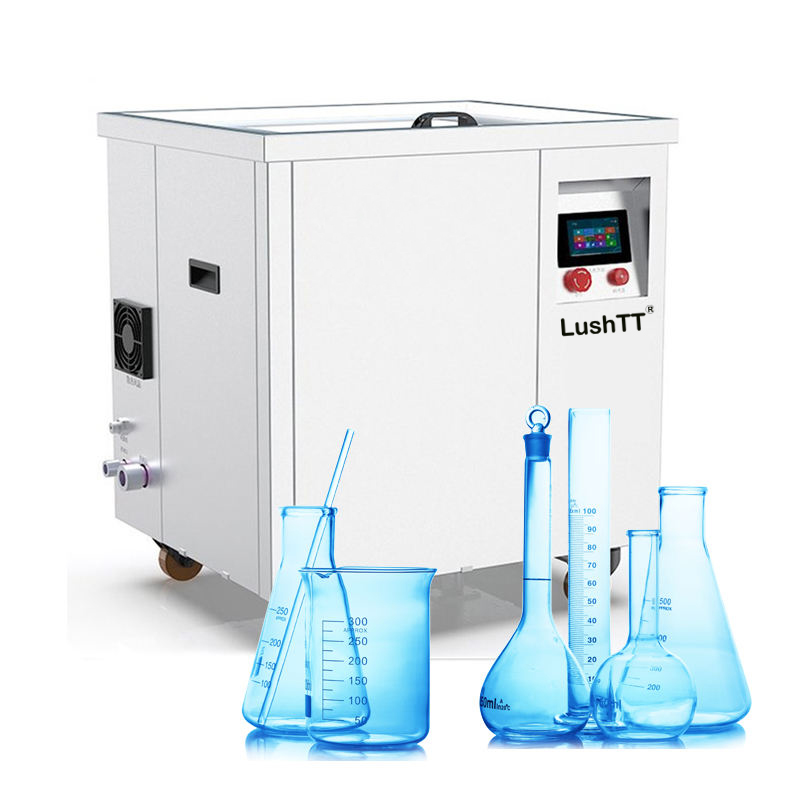

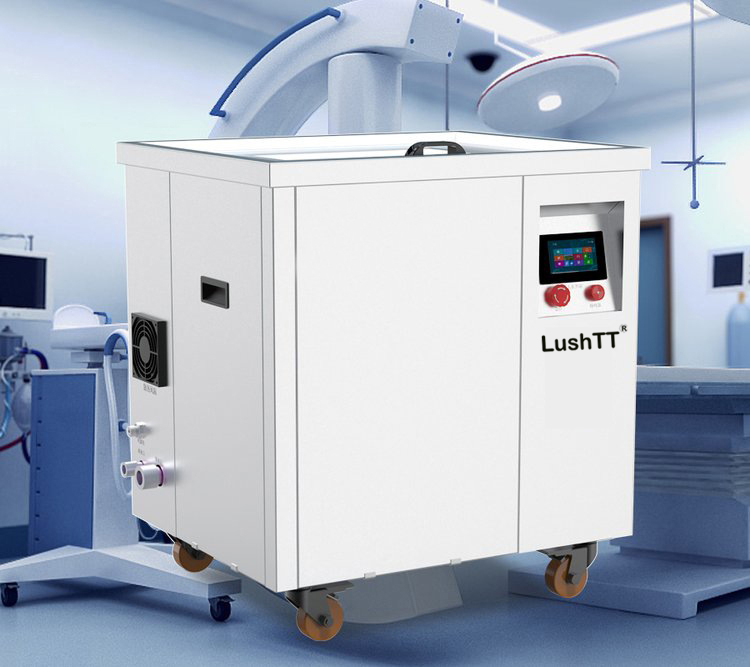

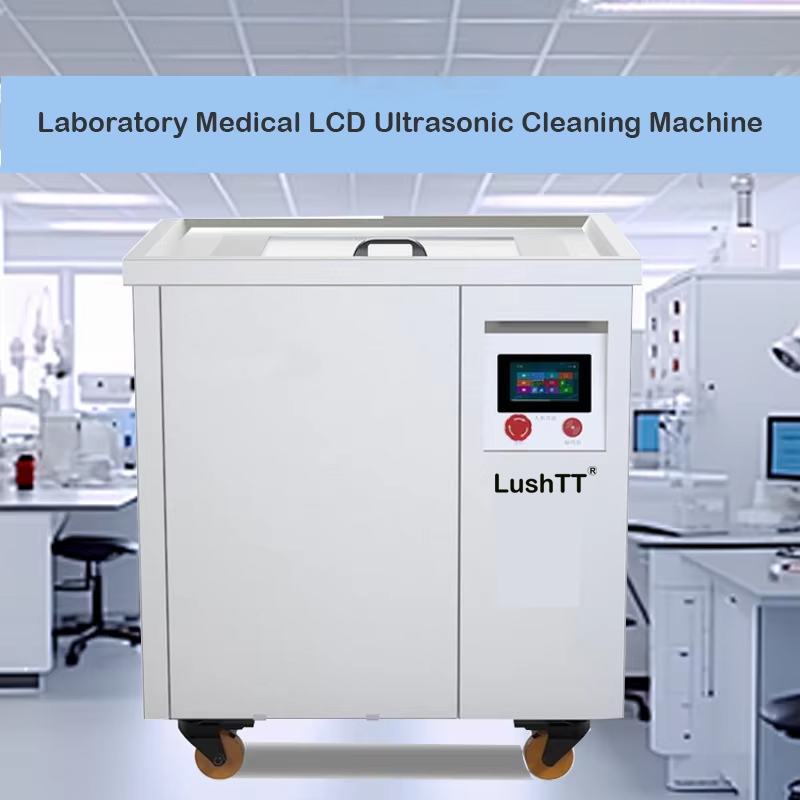

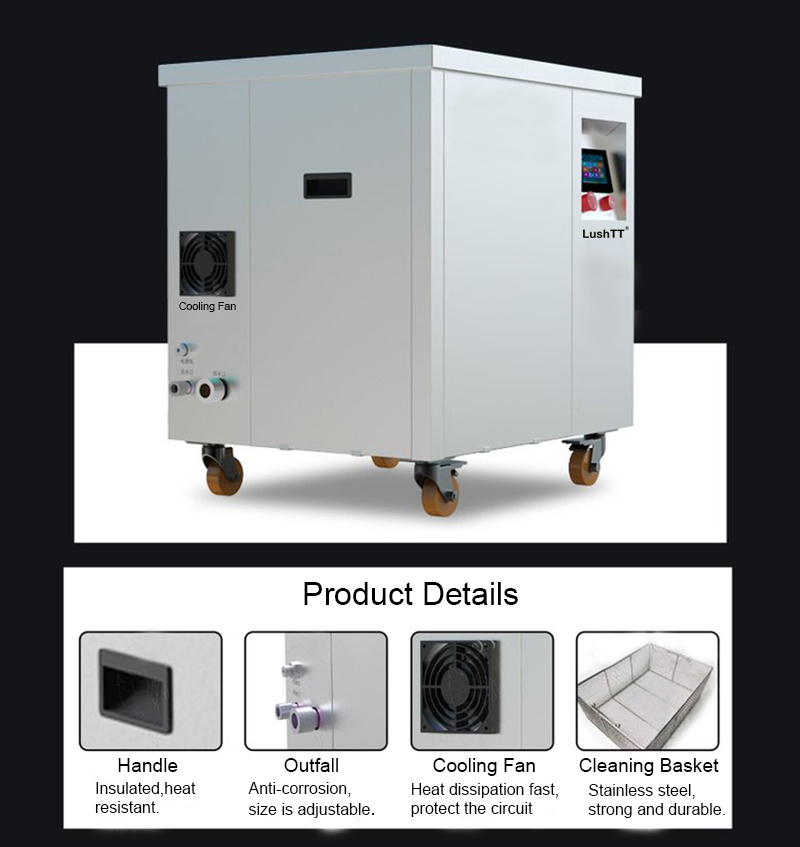

Ultrasonic Bath for Lab 77L with PLC Touch Screen Control Glass Washer Machine
Reference price range$4,700.00 - $5,400.00
Request a project quote
Final pricing depends on the part, batch size and selected configuration. Share the cleaning target and the factory team will confirm a suitable system.
Specifications and product details
The complete original product information is kept below for technical review.
1. Model: LTT-1024AL

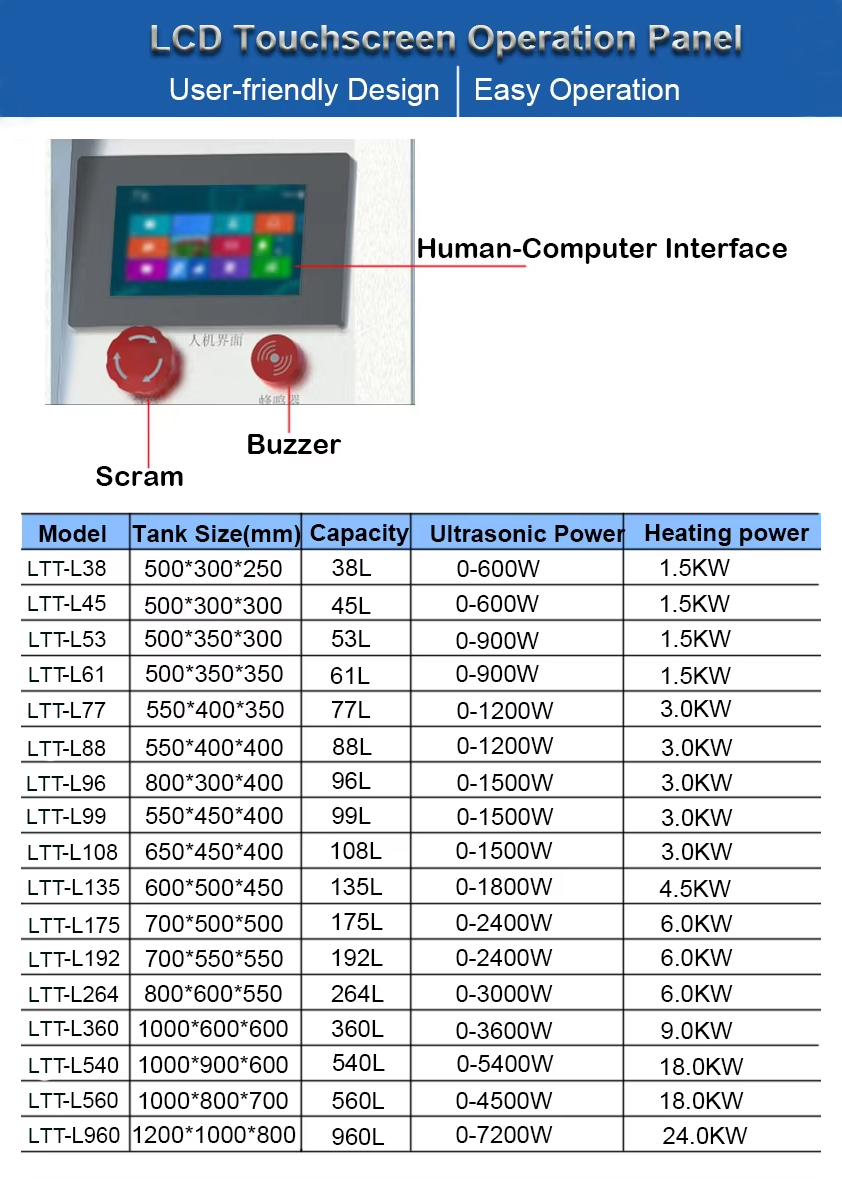

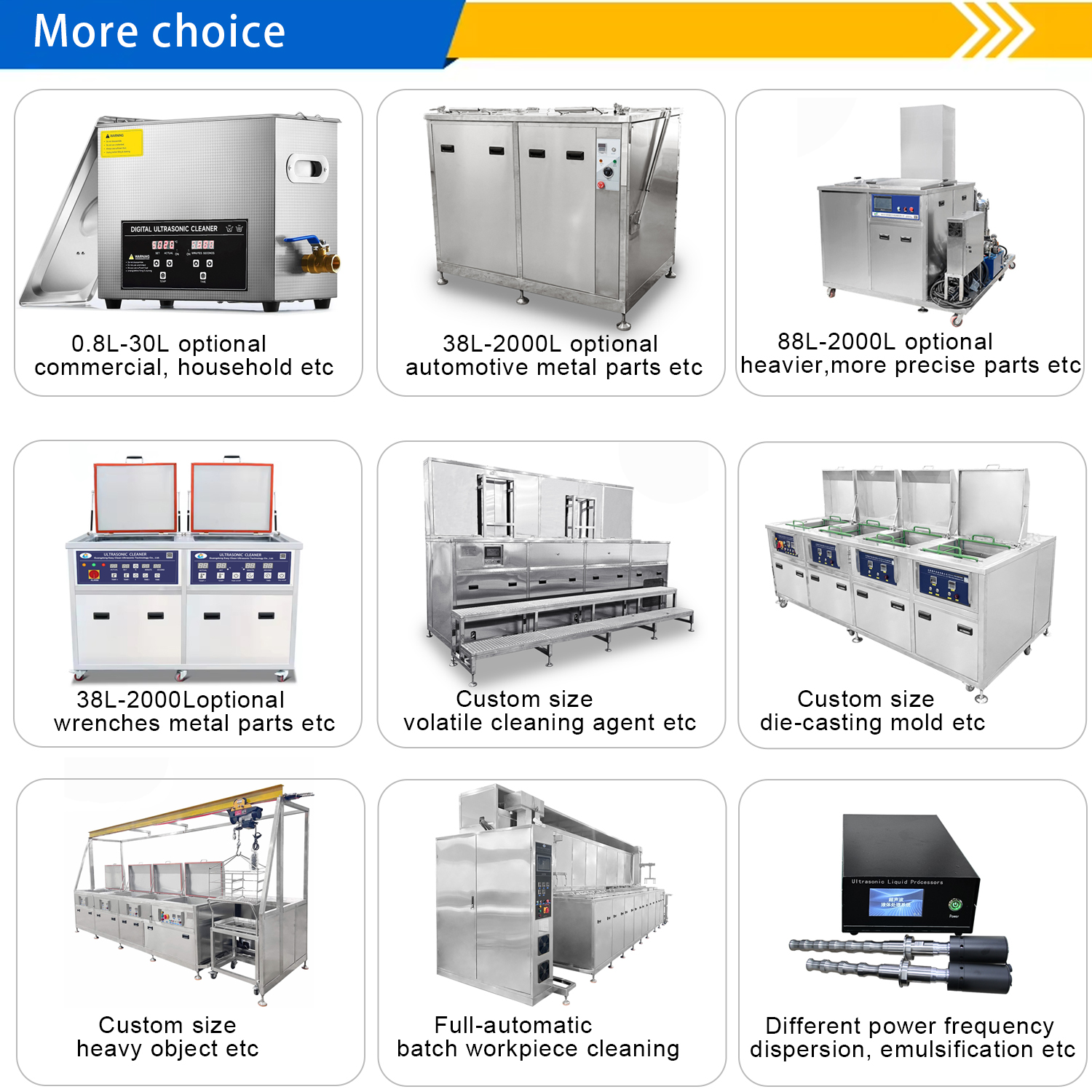

2. Tank capacity: 77L. Tank size: 550*400*350mm. Tank material: SUS304 Or SUS316. Machine size: 730x610x850mm. Packaging size: 930x750x1050MM. Can customize 38L /45L /53L /61L /77L /88L /96L /99L /108L /135L /175L /264L /360L /650 /560L /960L /1024L.
3. Ultrasonic power: 1200W. Transducer quantity: 24pcs. Heating power: 3000W. Timer: 1-99h adjustable. Heater: 0-95c adjustable.
4. Frequency: 40khz, can customize 68khz / 80khz / 120khz.
5. Control: Built-in ultrasonic generator, save space. PLC touch screen, easy to operate.
6. Voltage: 220V/380V, 1 phase or 3 phases.
7. Packing: 1 unit / wooden case
Description
Lush Trees Tech Ultrasonic Bath for Lab 77L with PLC Touch Screen Control Glass Washer Machine
1. Specific liquid level protection and alarm function.
2. The instrument operating procedure adopts single-chip microcomputer software or LCD touch screen PLC program control.
3. Display the functional parameters of the product.
4. Display the memorized and set ultrasonic working time.
5. Display the memorized and set heating temperature aswell as the actual temperature.
6. The tank inside the cleaner is formed by deep drawingstainless steel plate.
7. Solution filtration adopts constant temperaturenumerical control device.
8. The cleaner rack adopts stainless steel mesh screen welded by argon arc welding.
9. Display the memorized and set ultrasonic power.
10. Display overvoltage and overcurrent protection indicators.
11. The muffler cover and shell of the cleaner are made of high-quality stainless steel plate.
12. Display no solution protection indication.
13. Display cumùlative working time.
Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 93 × 75 × 105 cm |
More than a machine in a box.
Production, packing, delivery and long-term project support are part of every Lush Trees Tech order.

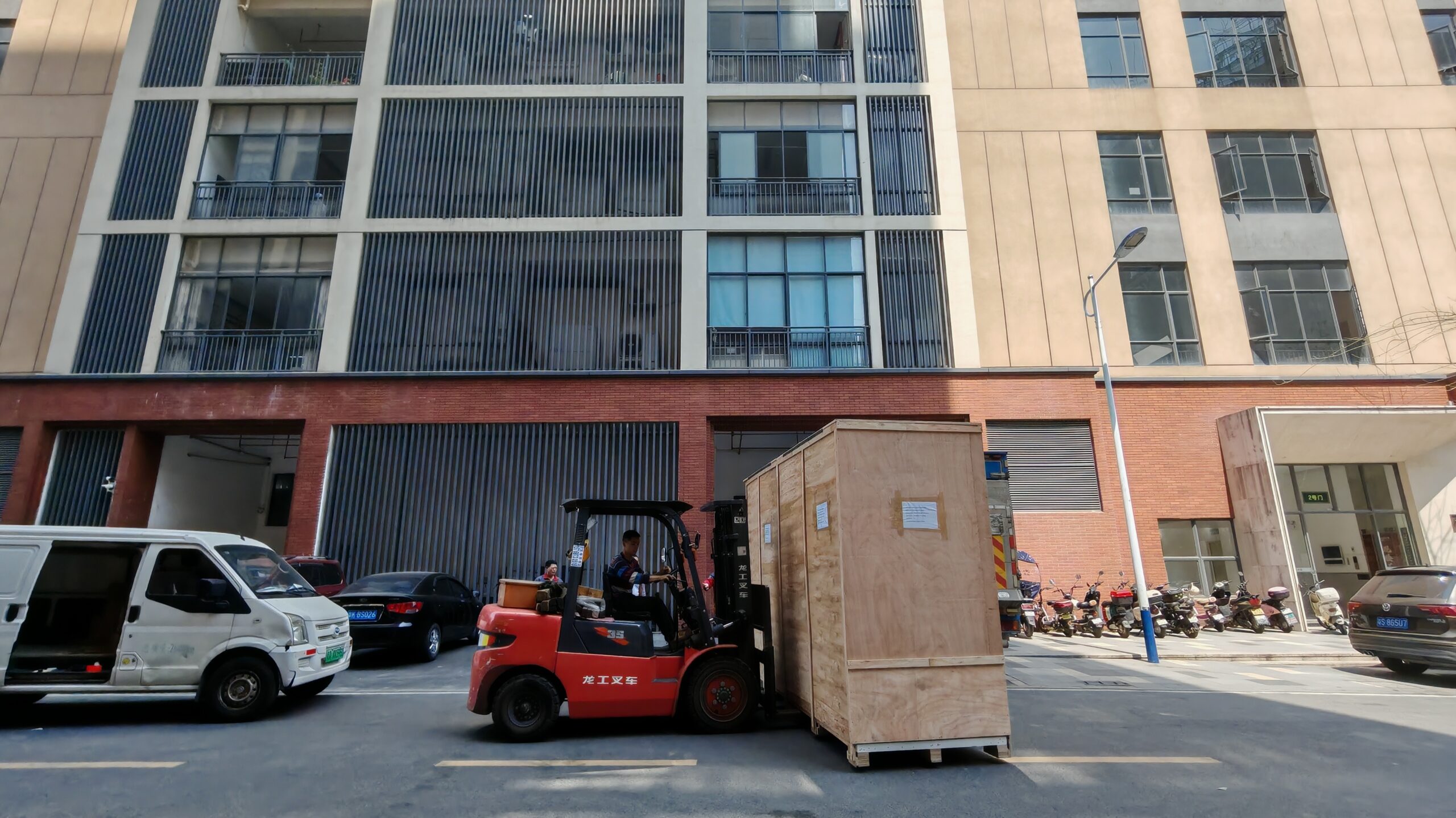

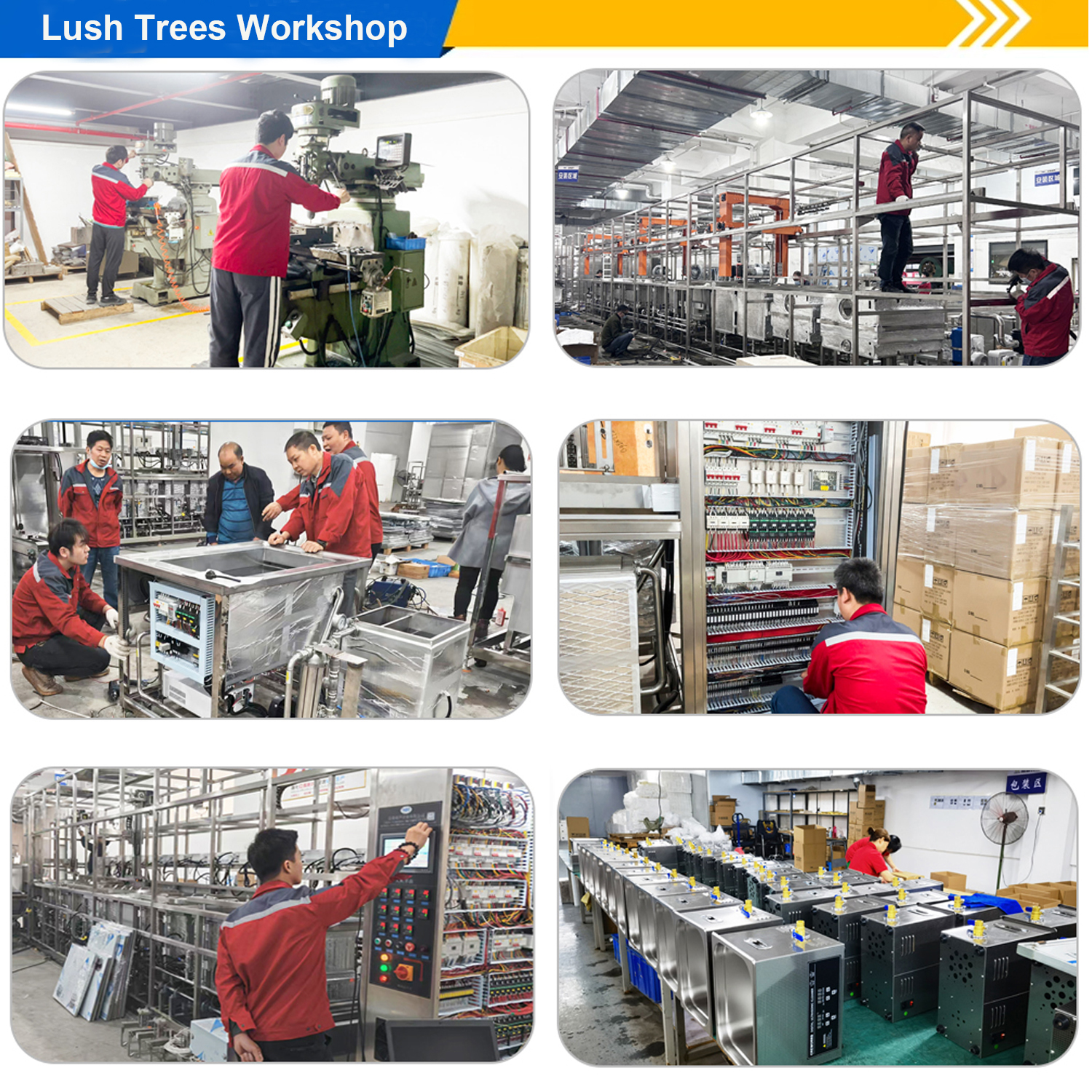

Factory production and delivery
Support for different ways of working
Related products
-

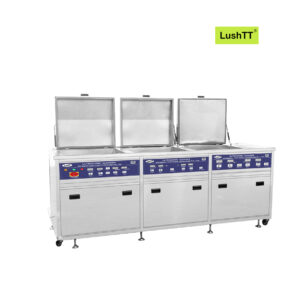

Ultrasonic Cleaning Machine 108L Three Tanks DPF Engine Injectors Parts Washer
Reference price range$3,880.00 - $3,990.00 View details and quote -

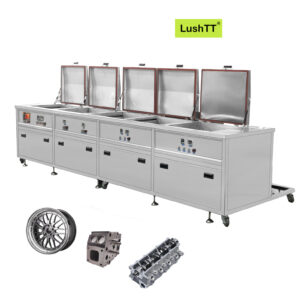

Industrial Ultrasonic Cleaner Five Groove 77L Rinse Filtration Dry System
Reference price range$8,200.00 - $8,500.00 View details and quote -

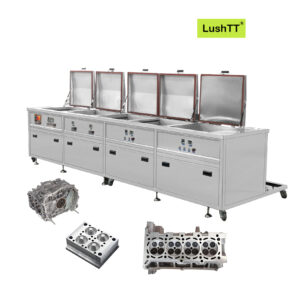

Ultrasonic Cleaning Machine Five Tanks 192L Washing Machine for Automotive Workshop
Reference price range$12,900.00 - $13,900.00 View details and quote -

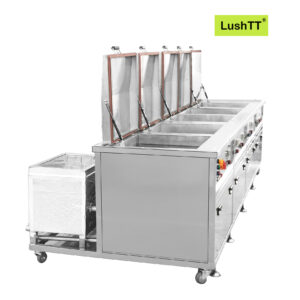

Ultrasonic Cleaner Multifunction 108L Five Tanks DPF Filter Engine Block Washer
