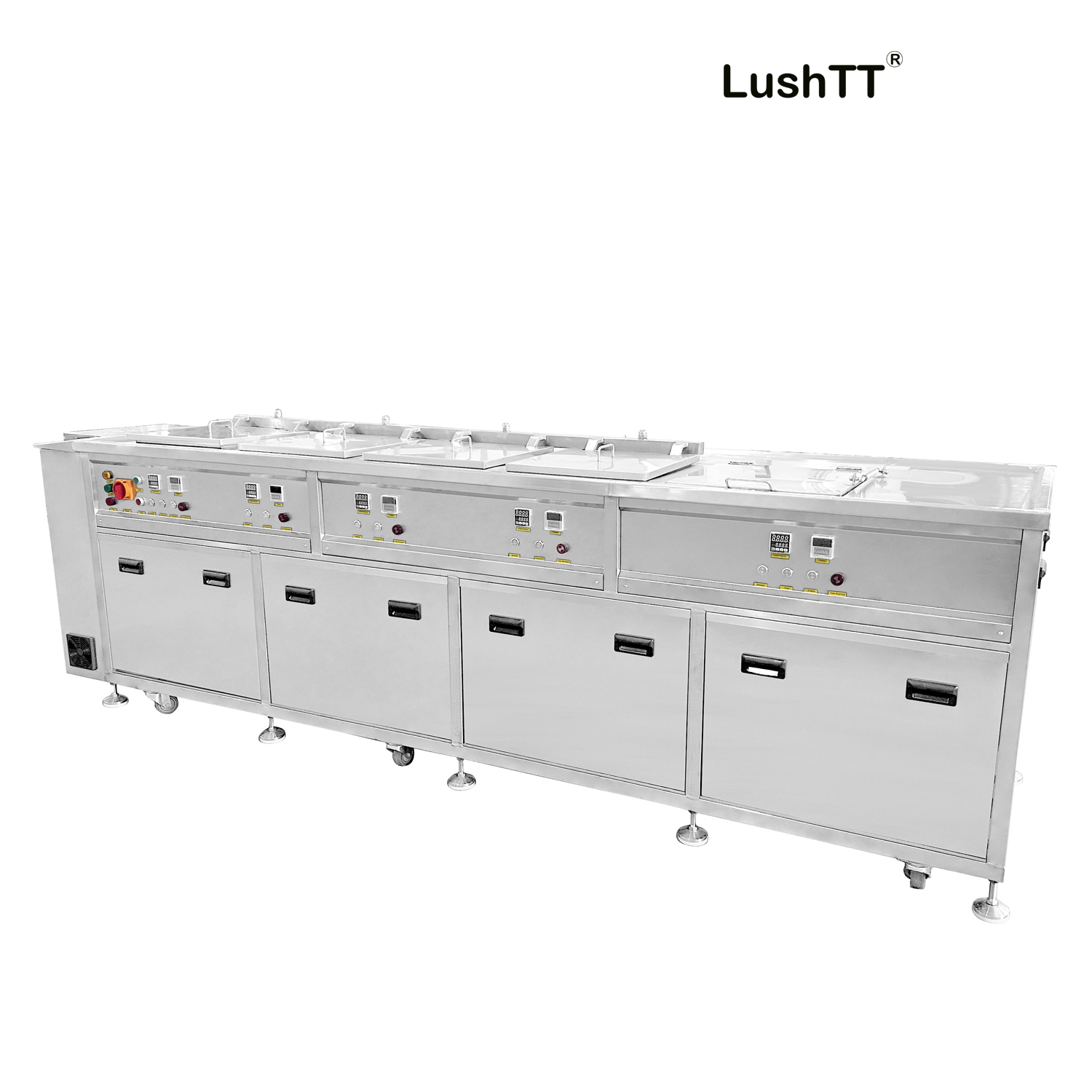

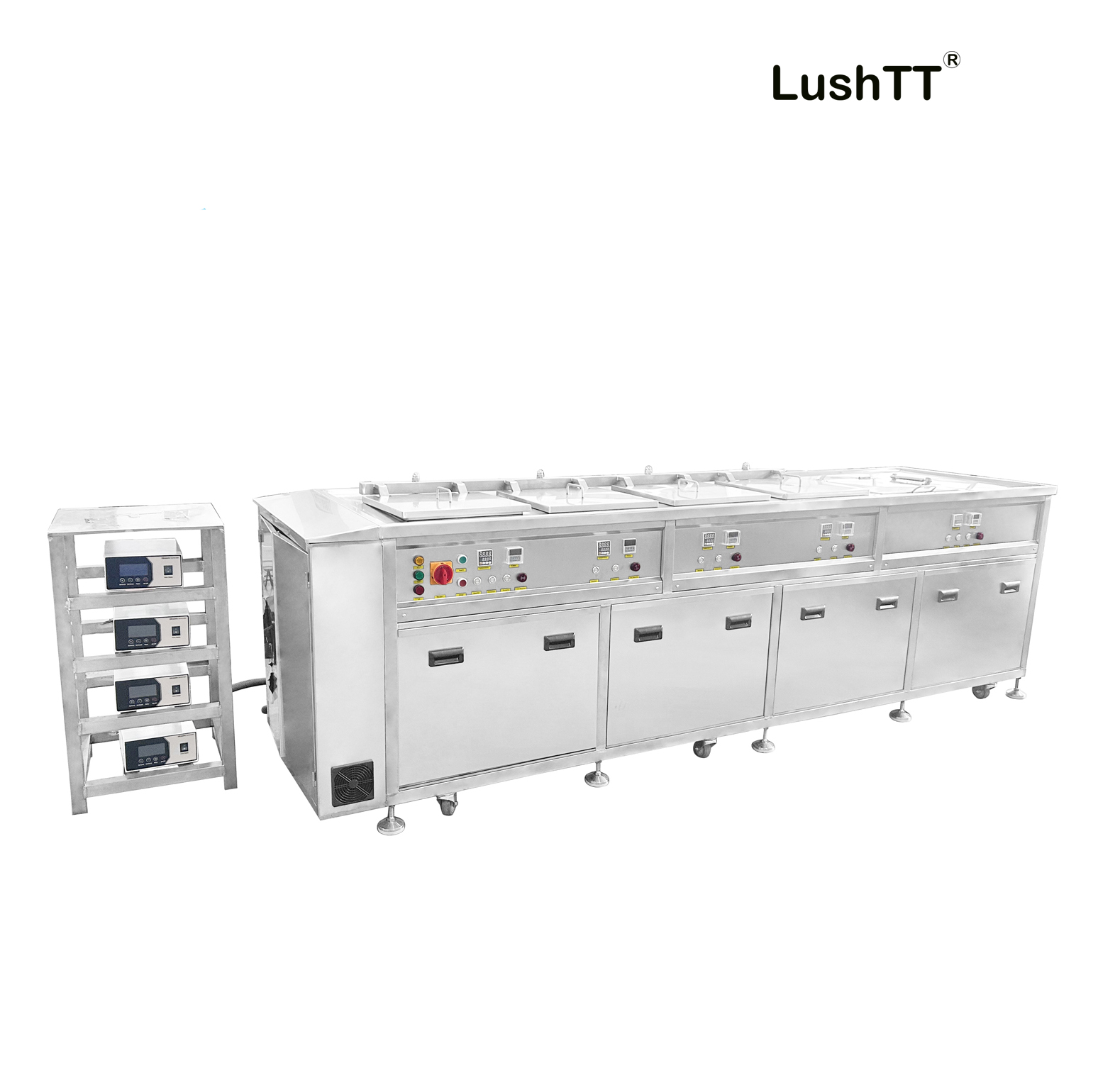

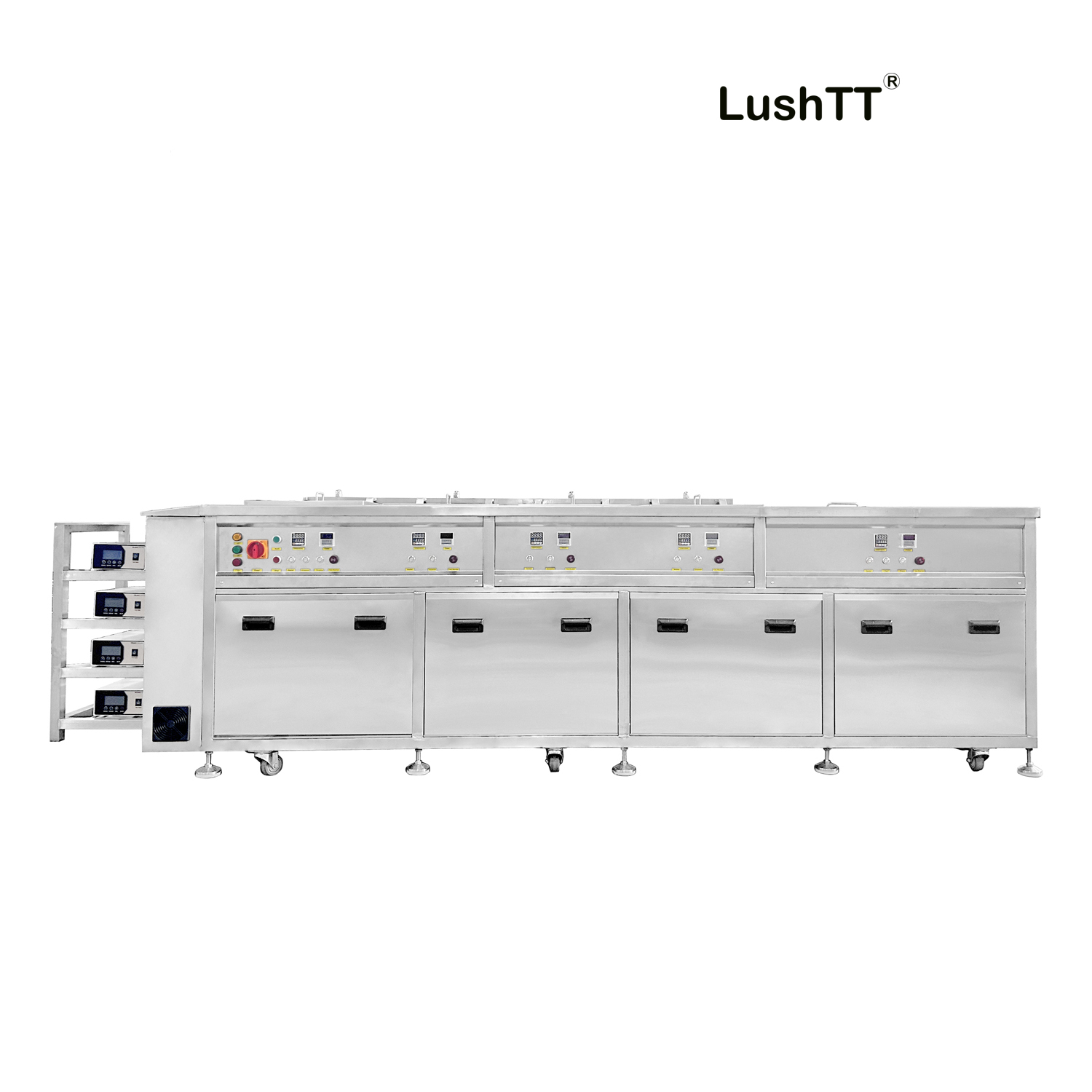

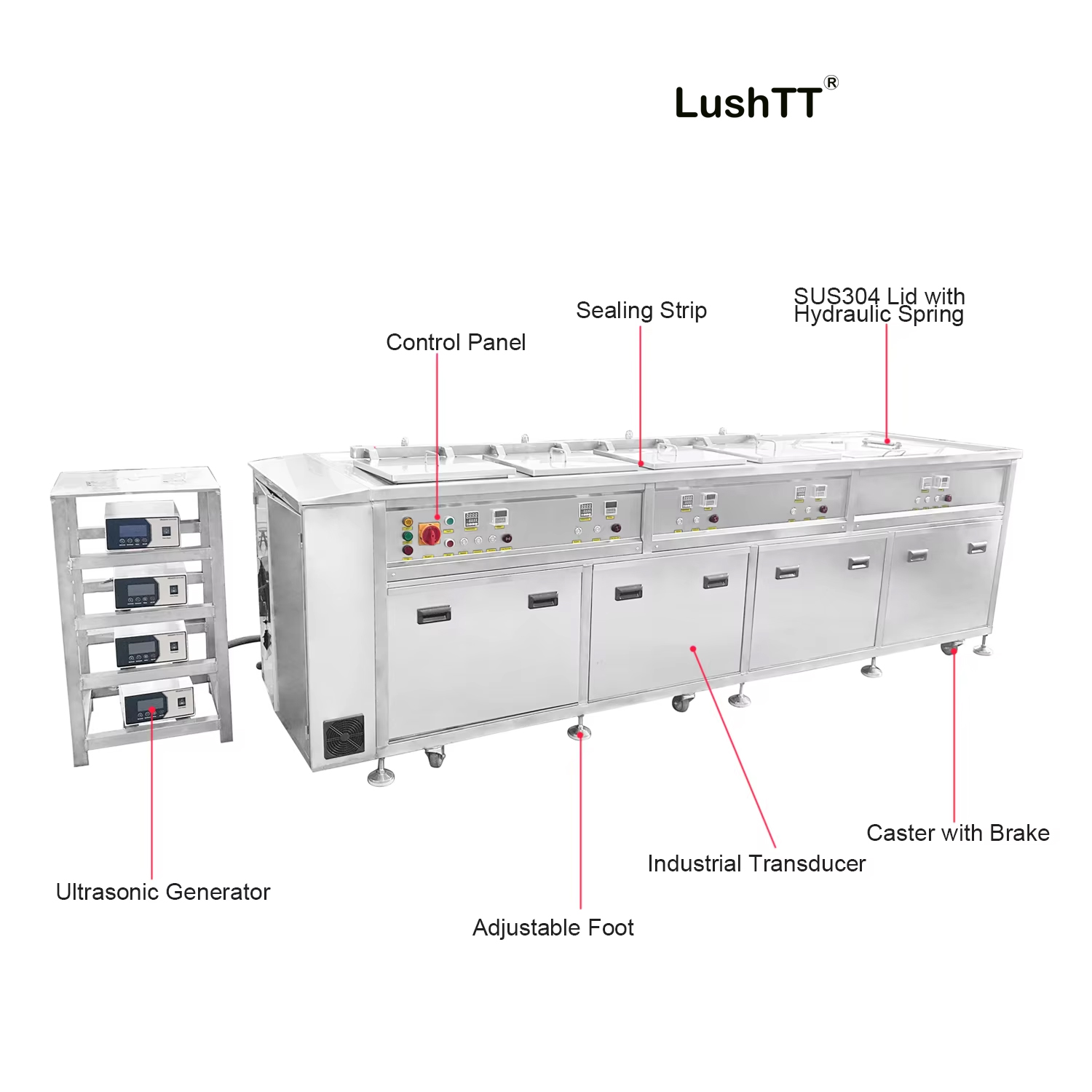

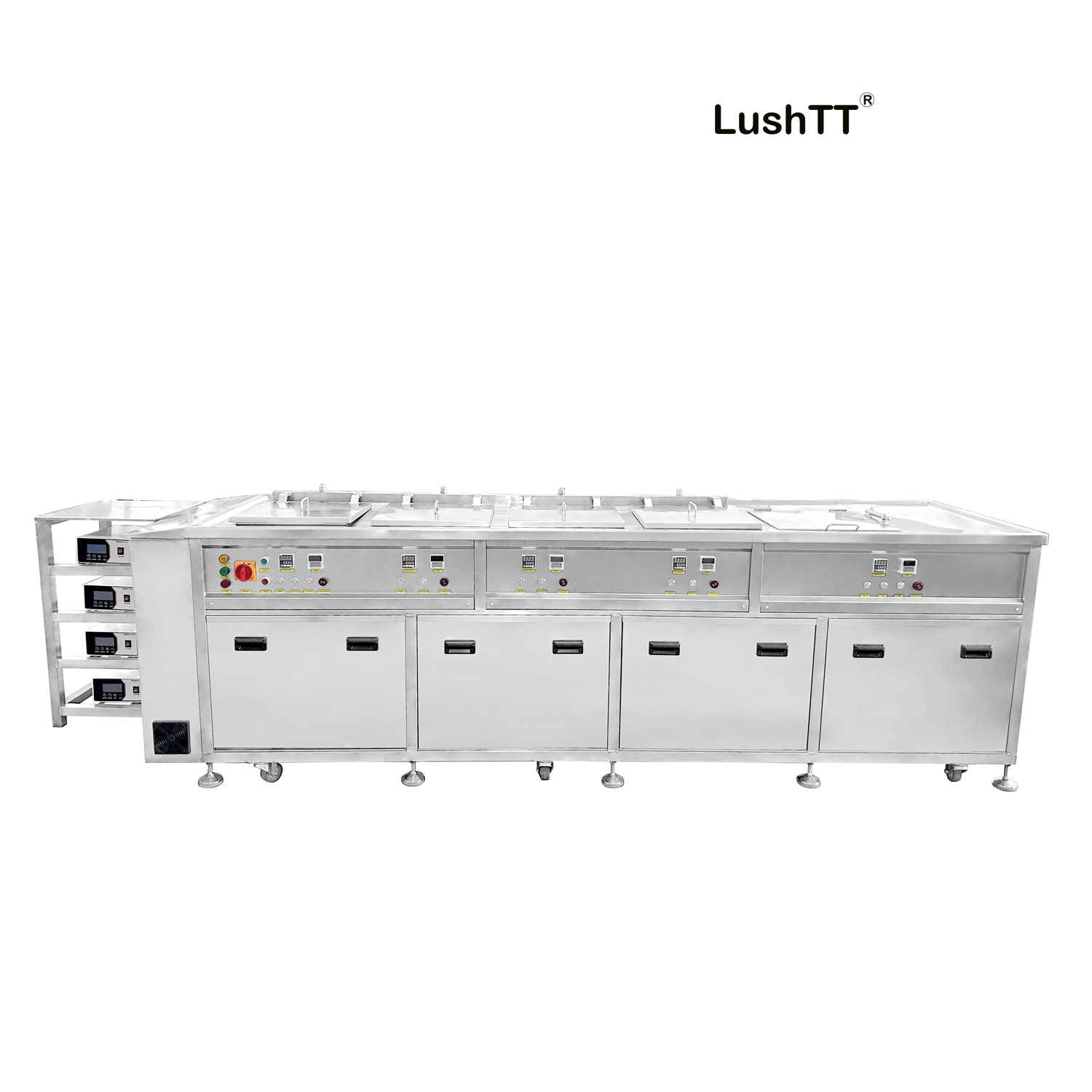

Industrial Ultrasonic Cleaner Motors 5 Tanks 108L Car Engine Wash Machine
Original price was: $10,900.00.$9,900.00Current price is: $9,900.00.
1. Model: LTT-5120CFD
2. Function: 1st tank ultrasonic cleaning (with filtration and recycling) + 2nd tank ultrasonic cleaning + 3rd tank ultrasonic cleaning + 4th tank ultrasonic rinsing + 5th tank hot air circulation drying.
3. Each tank size: 600*450*400mm, each tank capacity: 108L, transducers(PCS) : 30PCS for each 1st, 2nd, 3rd and 4th tank, total 120pcs. Ultrasonic power of each 1st, 2nd, 3rd and 4th tank: 1500W (input 1800W, output 1500W), heating power of each tank: 3KW for each tank.
4. Ultrasonic frequency: 28KHZ, or customize 40KHZ / 68KHZ / 80KHZ / 120KHZ.
5. Tank material: SUS304 or SUS316L, can customize. Tank thickness: Bottom 2.5MM, 4 sides 2MM.
6. Timer of each tank: 1-99min adjustable/Continous mode.
7. Heater: 20-85c adjustable for the first 3 tanks, 20-100C or 20-120C or 20-150C for the 4th tank.
8. Drain valve: 1 inch, basket & lid: standard, equipped casters with brake.
9. Machine Voltage: 380V, 3 phases. Generator Voltage: AC110V or 220V, 1 phase.
Need some help?
Contact Us
Lush Trees Tech Industrial Ultrasonic Cleaner Motors 5 Tanks 108L Car Engine Wash Machine
1. Automatic frequency tracking generator drive, modular design of the whole machine, easy to operate, convenient to maintain.
2. Digital controlled dispaly, one-button to start cleaning, can quickly remove the contaminants from the work pieces in several minutes.
3. Heating temperature is adjustable, 20-100% ultrasonic power is adjustable, cleaning time can be adjusted in minutes and hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong.
4. Ultrasonic transducers, high strength glue bonding, have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 or SUS316L 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment.
5. Pass 2500V high voltage test, strict production process and aging process, have mute cover/ 304 or 316L stainless steel washing basket, etc. And certificated by CE/ROHS/FCC.
6. Equipped with flitration and circulation device, improve the cleaning effect, saves cleaning liquid and environmental friendly. Automatic basket lifting system can be added too.
Additional information
| Weight | 1300 kg |
|---|---|
| Dimensions | 420 × 110 × 100 cm |
