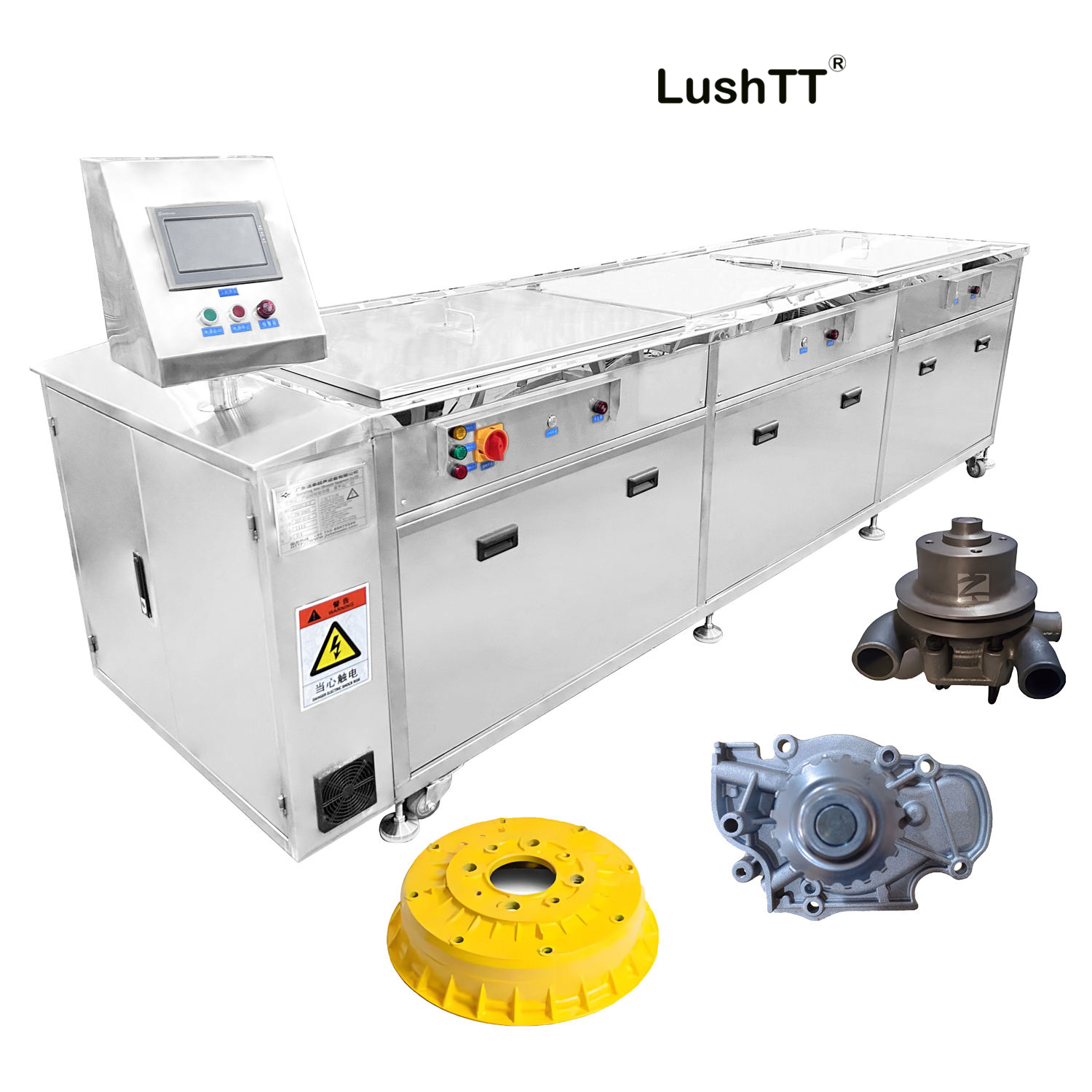

Parts Cleaning Machine Ultrasonic Tank Three Baths 360L Filter Rinse Dry System
Original price was: $8,200.00.$7,700.00Current price is: $7,700.00.
1. Stainless steel tank has resistance to wear and long work life.
2. With Stainless steel cleaning basket.
3. Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement.
4. PLC touch screen control, industrial control chip microcontroller, flexible circuit boards control, more secure & stable.
5. With drainage, basket, lid and multi-direction castors.
6. Transducer : Korea techinique.
7. It can applied to clean cast iron, steel, stainless steel, brass and bronze work pieces.
Need some help?
Contact Us
Lush Trees Tech Parts Cleaning Machine Ultrasonic Tank Three Baths 360L Filter Rinse Dry System
1. Model: LTT-3144FRDB
2. Tank function: 1st tank ultrasonic cleaning+heating+filtration with circulation sub-tank, 2nd tank ultrasonic rinsing+heating, 3rd tank hot air circulation drying.
3. Tank Capacity: 360L+360L+360L. Can customize any size as per users' actual needs. Such as 38L / 45L / 53L / 61L / 77L / 88L / 96L / 99L / 108L / 135L / 175L / 235L / 264L / 360L / 540L / 560L / 960L / 1024L.
4. Ultrasonic Power of each 1st and 2nd tank: 0~3600W adjustable, transducer qty of each tank: 72pcs.
5. Frequency: 28khz, or customize 40khz / 68khz / 80khz / 120khz.
6. Heating Power: 9KW for each tank. Temperature: RT~95°C for 1st and 2nd tank, RT~100°C or RT~150°C for the 3rd tank.
7. Each inner Tank Size: 1000*600*600mm(L*W*H).
8. Inner Tank Material: SUS304 or SUS316L, or customize as per your needs.
Additional information
| Weight | 570 kg |
|---|---|
| Dimensions | 350 × 125 × 120 cm |
