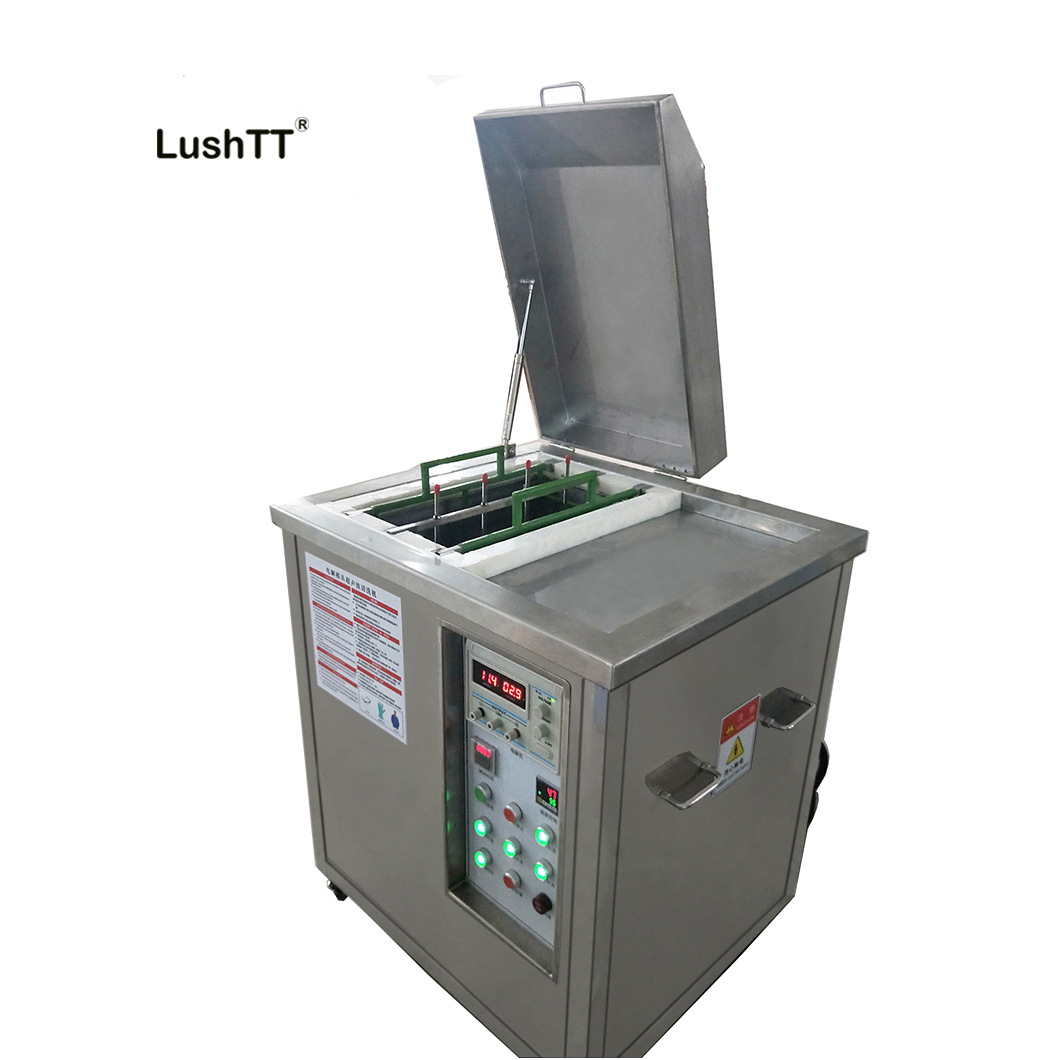

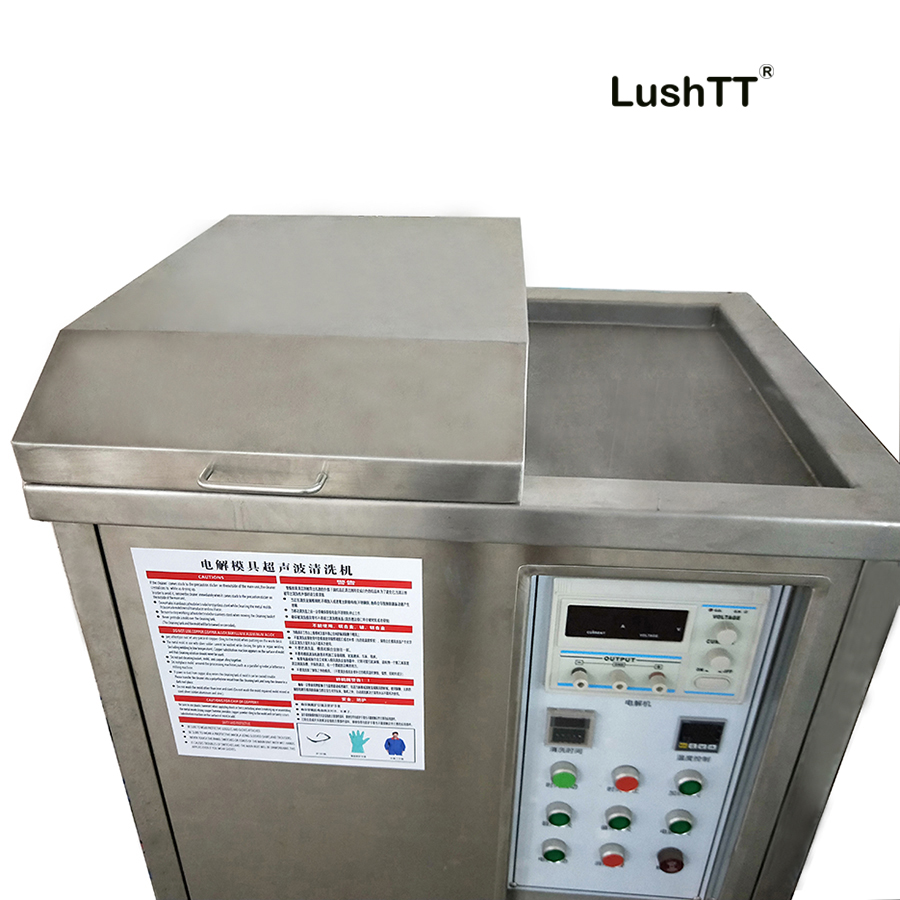

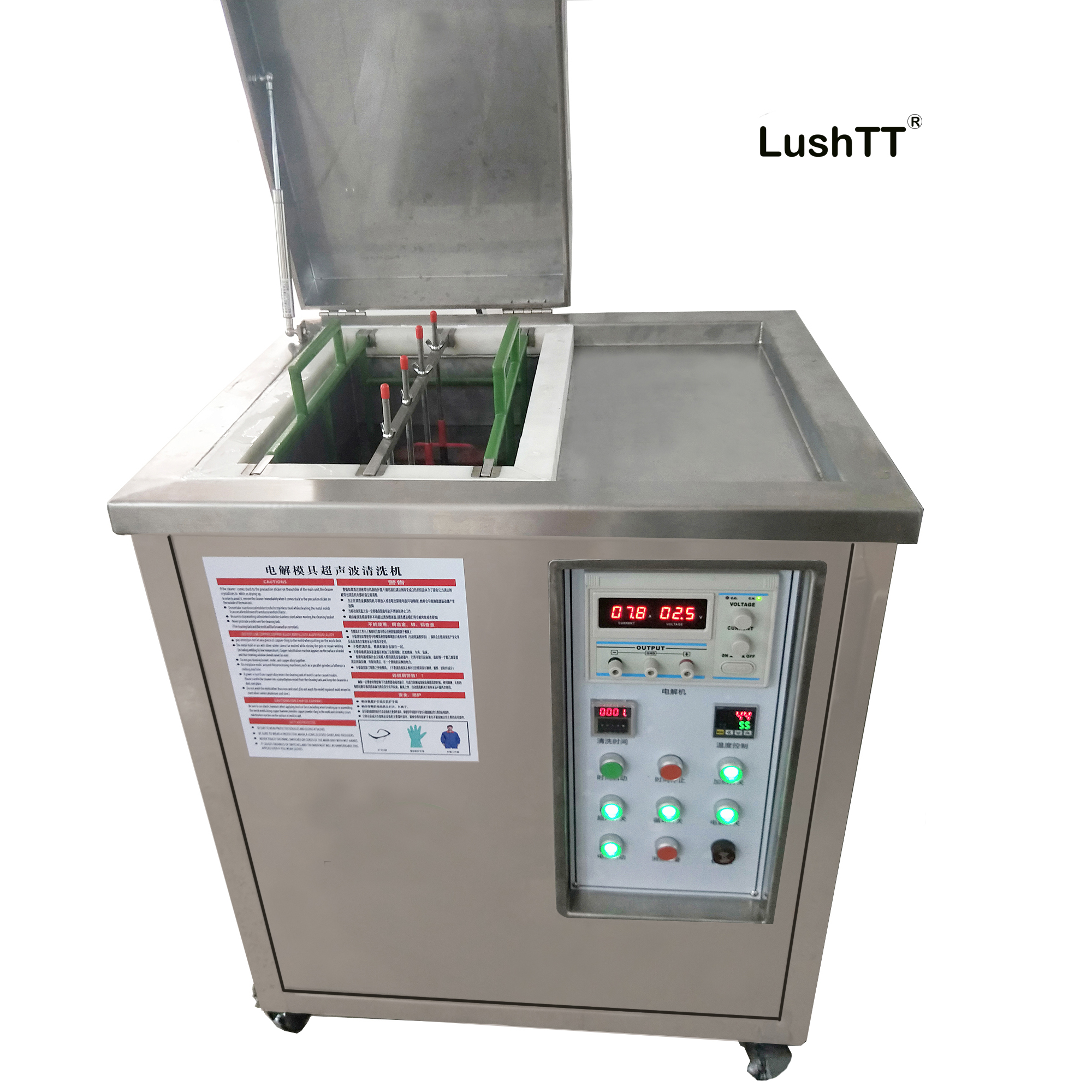

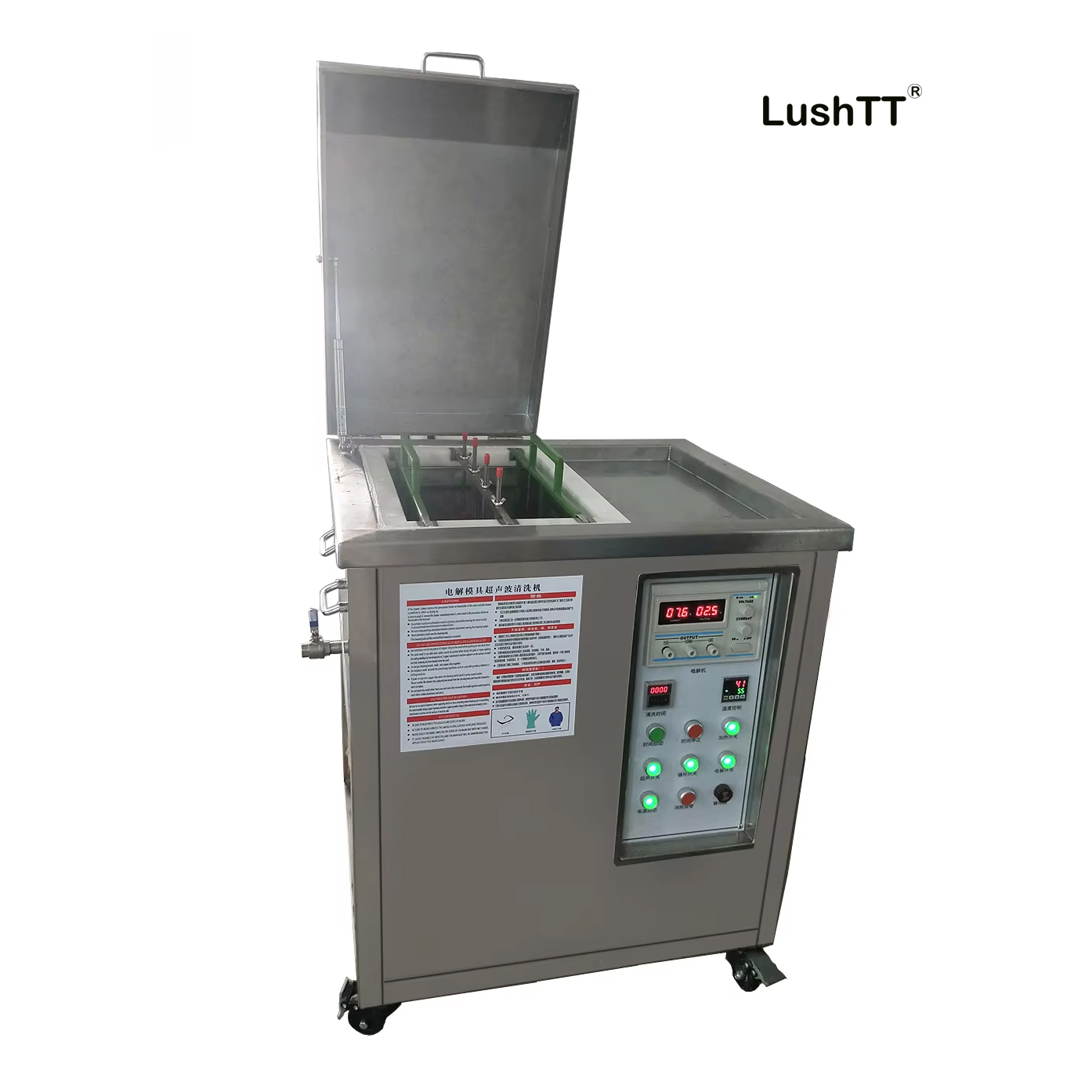

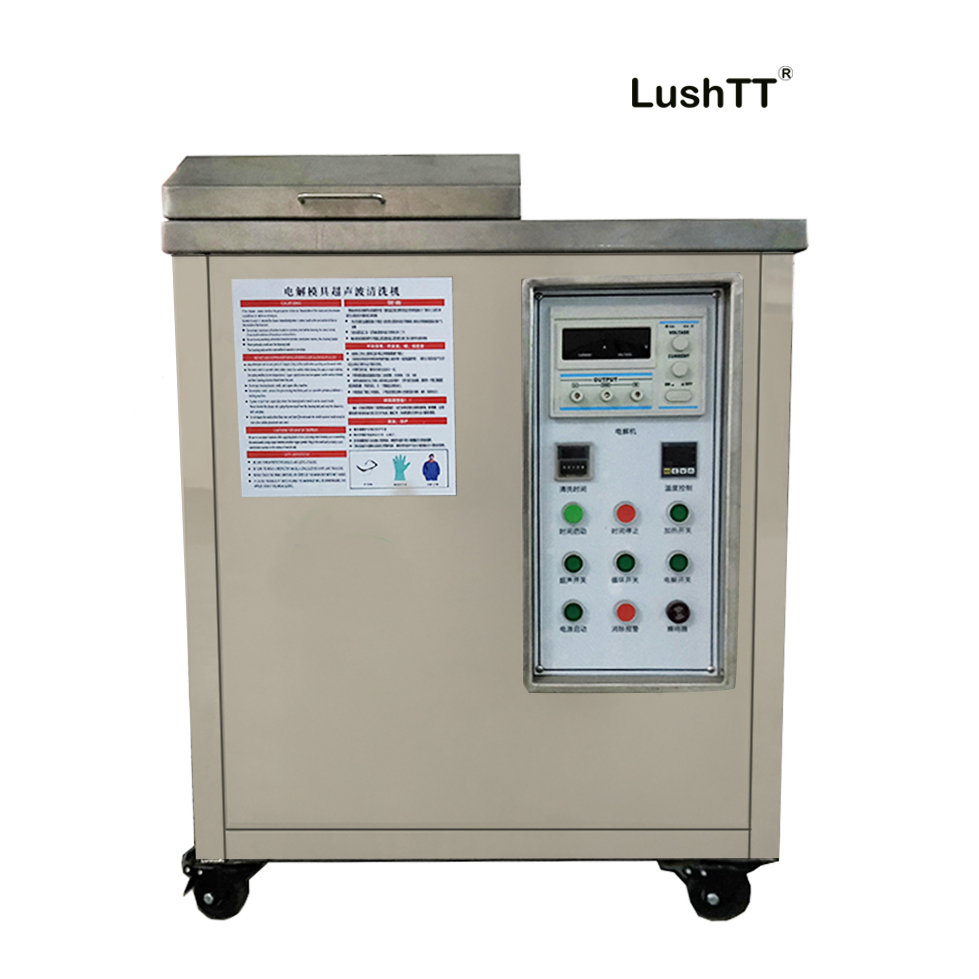

Industrial Ultrasonic Cleaner 52L Electrolytic Mold Cleaning Equipment
Original price was: $6,500.00.$5,600.00Current price is: $5,600.00.
1. Tank size is 500*300*260mm, tank capacity is 52L. Tank material is stainless steel SUS316 in 2.0mm, other components are mainly SUS304. We can can customize the material, size and construction as per user’s actual specific needs.
2. Ultrasonic power is 0-1080W adjustable, transducer quantity is 24pcs. Ultrasonic frequency is 40khz. Can customize 68khz / 80khz / 120khz. The bigger frequency suits the more precision work pieces.
3. Heating power is 2000W from room temperature to highest 95℃ adjustable. Timer 1-99 hours adjustable.
4. Transducers: Using Ilsan piezoelectric ceramic chip from Korea, it can work for long time under different temperature; imported bonding technology, ensure the transducers can work for a long time without falling off.
5. Ultrasonic generator: adopt international leading technology, adopt IGBT module, SCM technology, stable working condition, bigger and stronger output power, have over-voltage, over-current, output short circuit and other protective measures.
6. With electrolysis unit, 100A rectifier unit.
7. Mold type: injection mold, instrument precision mold, connector mold, precision seal mold, stamping mold, molding mold, etc.
8. Can remove mold gas residue layer, high temperature formed sulfide, fire plastic residue, toner residue, mold surface oxide, as well as a variety of mold rust stains, oil stains, etc.
9. Voltage: 220V 1 phase, or 380V / 415V 3 phases.
10. Packing: 1 unit / wooden case.
Need some help?
Contact Us
Lush Trees Tech Industrial Ultrasonic Cleaner 52L Electrolytic Mold Cleaning Equipment
The use of electrolytic mold ultrasonic cleaning machine to clean the mold has several advantages:
1. Thorough cleaning: Ultrasonic cleaning can produce vibration in tiny cracks and pores, thoroughly remove dirt and residue from the mold surface, and ensure thorough cleaning of the mold.
2. High efficiency and energy saving: electrolytic mold ultrasonic cleaning machine is usually able to complete the cleaning process in a short time, saving energy and labor costs.
3. No damage: Compared with traditional cleaning methods, ultrasonic cleaning will not cause damage to the surface of the mold and extend the service life of the mold.
4. Environmental protection: When using ultrasonic cleaning machine to clean the mold, usually only need to use cleaning solution, no need to use chemical solvents or other harmful substances, which is conductive to environmental protection.
5. Improve production quality: clean molds can ensure stable product quality and reduce production problems caused by mold pollution.
Additional information
| Weight | 120 kg |
|---|---|
| Dimensions | 120 × 60 × 110 cm |
