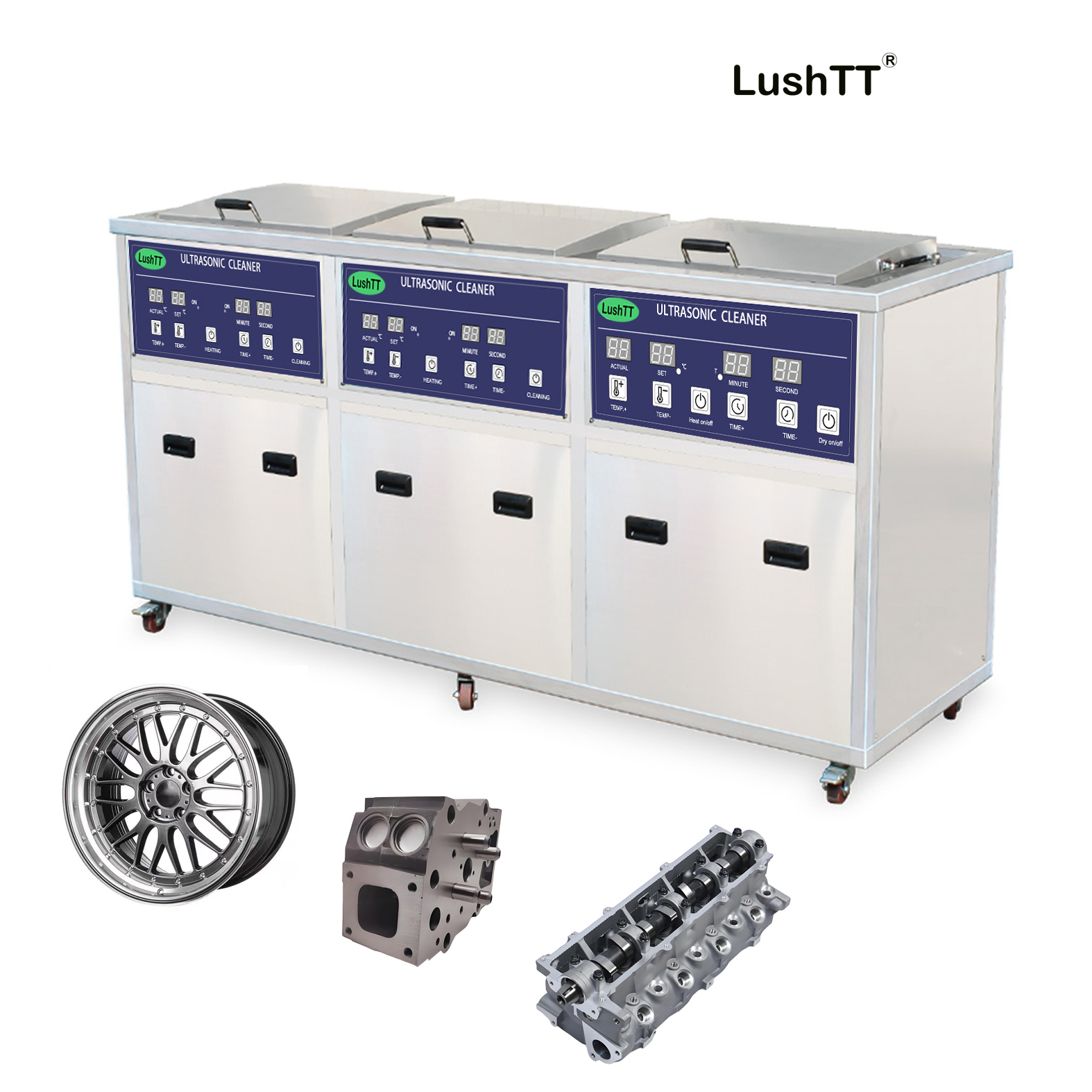

Ultrasonic Cleaning 88L Three Groove Workshop Parts Cleaner Rinse Filtration Dry System
Original price was: $3,800.00.$3,600.00Current price is: $3,600.00.
1. Model: LTT-3048BFRD
2. Tank function: 1st tank ultrasonic cleaning+heating+filtration with circulation sub-tank, 2nd tank ultrasonic rinsing+heating, 3rd tank hot air circulation drying.
3. Tank Capacity: 88L+88L+88L. Can customize any size as per users’ actual needs. Such as 38L / 45L / 53L / 61L / 77L / 88L / 96L / 99L / 108L / 135L / 175L / 235L / 264L / 360L / 540L / 560L / 960L / 1024L.
4. Ultrasonic Power of each 1st and 2nd tank: 0~1200W adjustable. Transducer qty of each 1st and 2nd tank: 24pcs, tota 48pcs.
5. Frequency: 28khz, or customize 40khz/68khz/80khz/120khz, heating Power: 3KW for each tank.
6. Temperature: RT~95°C for 1st and 2nd tank, RT~100°C or RT~120°C or RT~150°C for the 3rd tank.
7. Inner Tank Size: 550*400*400mm(L*W*H), basket Size: 500*380*360mm(L*W*H).
8. Gross Weight: 290kgs±10%
9. Inner Tank Material: SUS304 or SUS316L, can customize as per your needs.
Need some help?
Contact Us
Lush Trees Tech Ultrasonic Cleaning 88L Three Groove Workshop Parts Cleaner Rinse Filtration Dry System
1. Automatic frequency tracking generator drive, modular design of the whole machine, easy to operate, convenient to maintain.
2. Digital controlled dispaly, one-button to start cleaning, can quickly remove the contaminants from the work pieces in several minutes.
3. Heating temperature is adjustable, 20-100% ultrasonic power is adjustable, cleaning time can be adjusted in minutes and hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong.
4. Ultrasonic transducers, high strength glue bonding, have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 or SUS316L 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment.
5. Pass 2500V high voltage test, strict production process and aging process, have mute cover/ 304 or 316L stainless steel washing basket, etc. And certificated by CE/ROHS/FCC.
6. Equipped with flitration and circulation device, improve the cleaning effect, saves cleaning liquid and environmental friendly. Automatic basket lifting system can be added too.
Additional information
| Weight | 270 kg |
|---|---|
| Dimensions | 230 × 100 × 90 cm |
