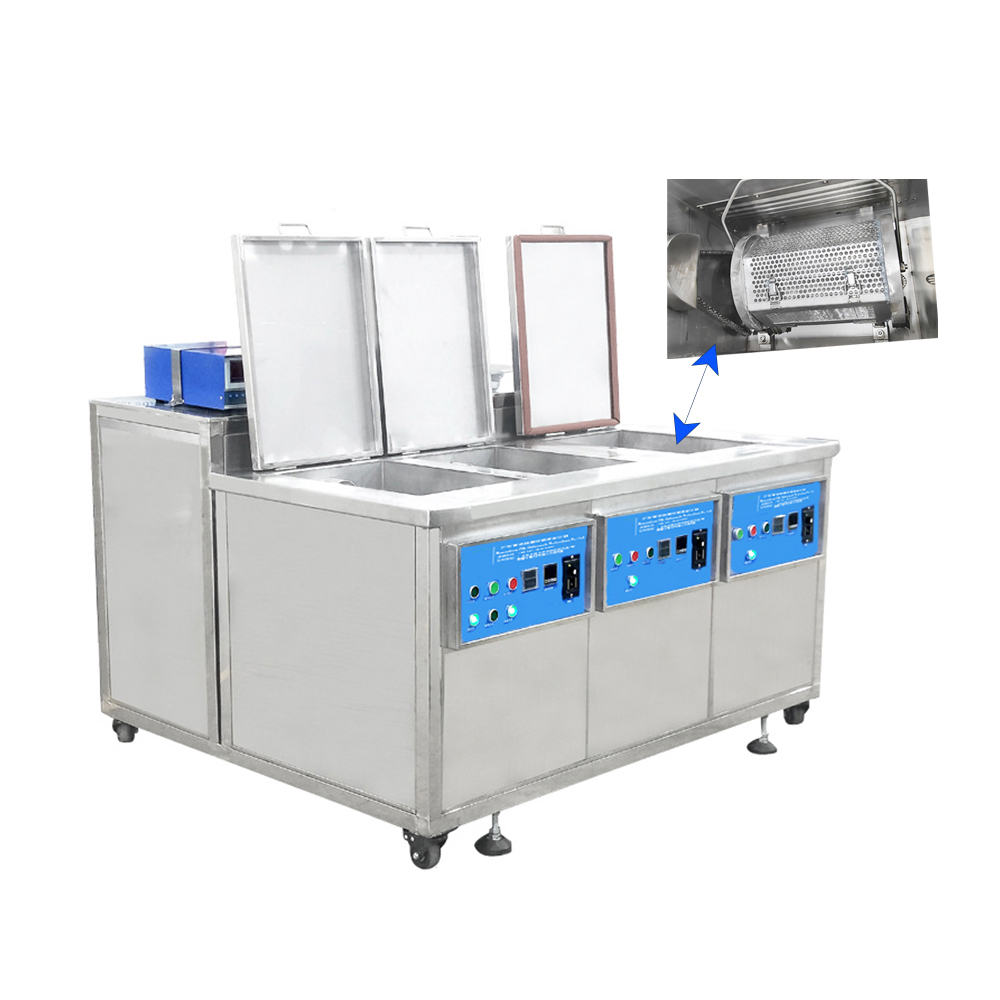

Automatic Rotate Drum Ultrasonic Cleaning Machine 61L 28khz Parts Washer
Original price was: $4,600.00.$4,000.00Current price is: $4,000.00.

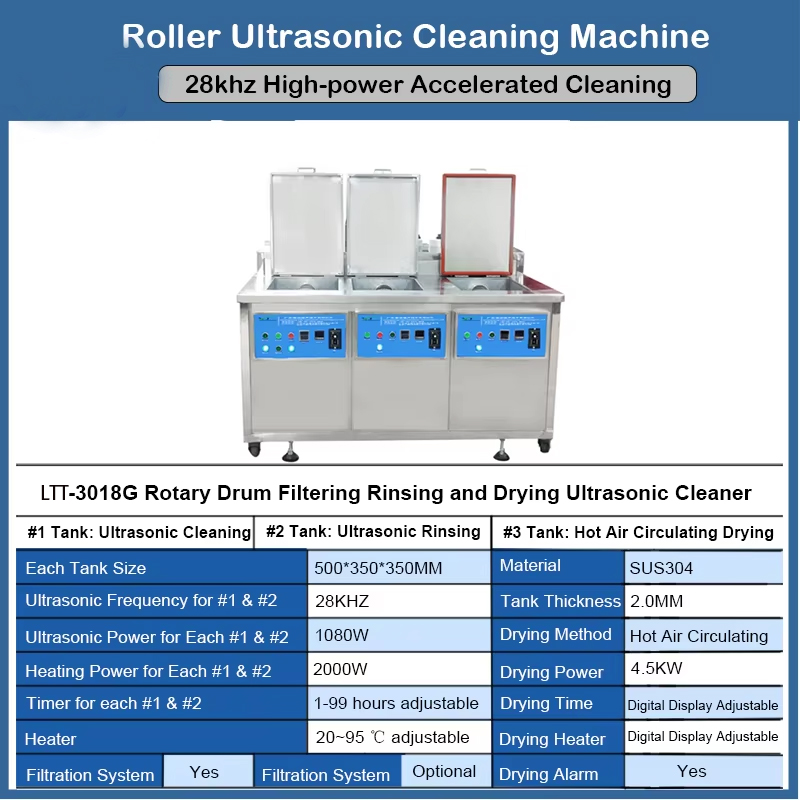

1. Model: LTT-3018G(61L)
2. Tank capacity: 61L. Tank size: 500*350*350mm. Tank material: SUS304 Or SUS316. We can customize the size, material and construction as per users’ specific requirements to meet the actual needs.
3. Ultrasonic power: 0-900W each 1st and 2nd tank（input power 1080W, max. output power 900W) adjustable, total 1800W. Transducer quantity: 18pcs each 1st and 2nd tank, total 36pcs. Heating power: 1.5KW for each 1st and 2nd tank, 4.5KW for the 3rd tank. Timer: 1-99h adjustable. Heater: 0-95c adjustable for each 1st and 2nd tank, 0-180C adjustable for the 3rd tank.
4. Frequency: 28khz or 40khz, can customize 68khz / 80khz / 120khz.

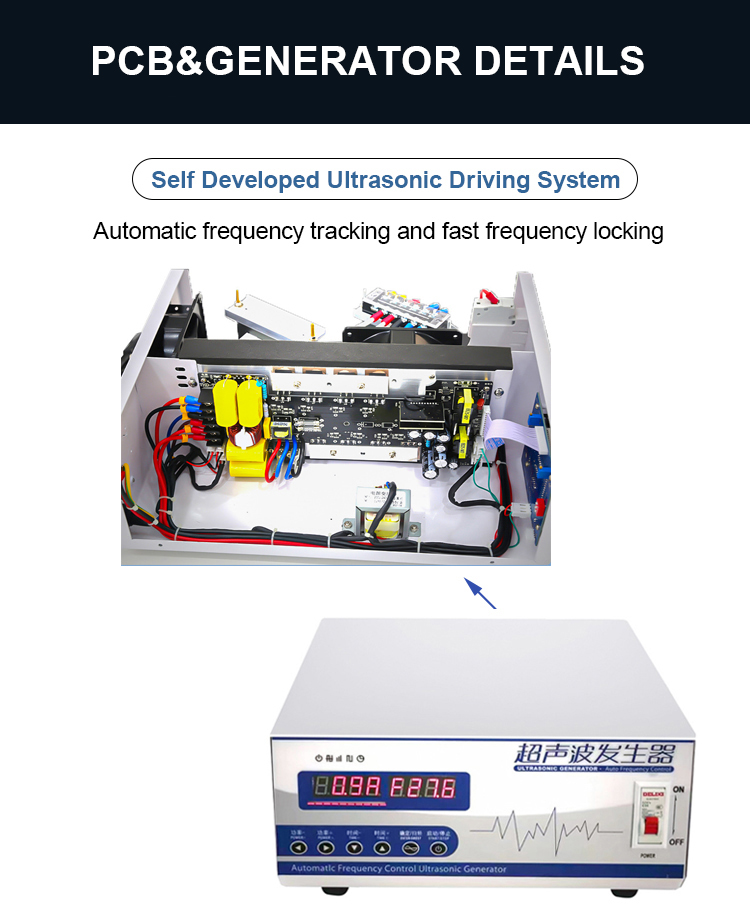

5. Control: Built-in generator, save space.

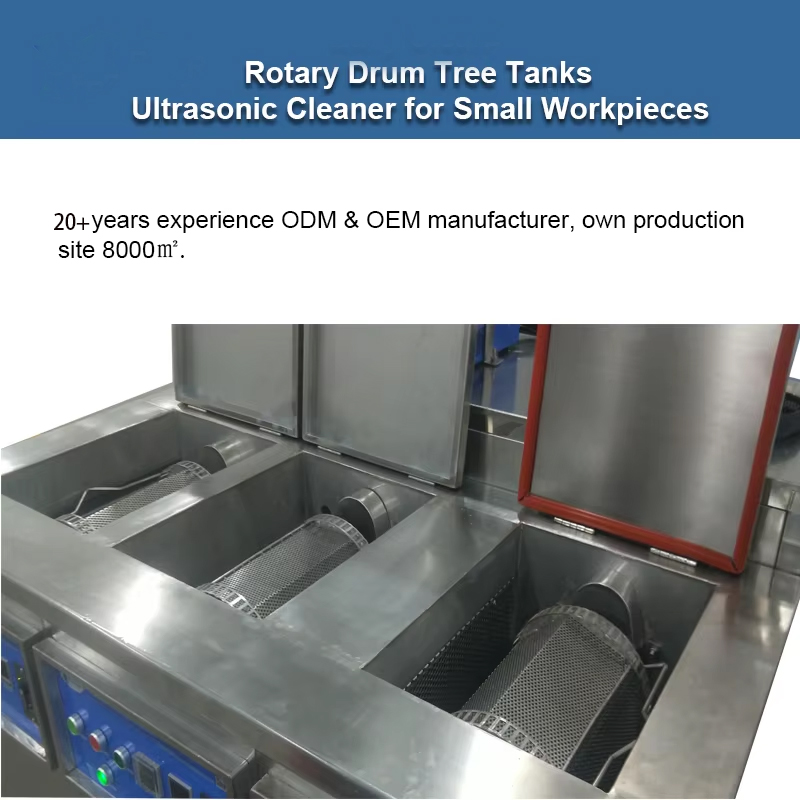

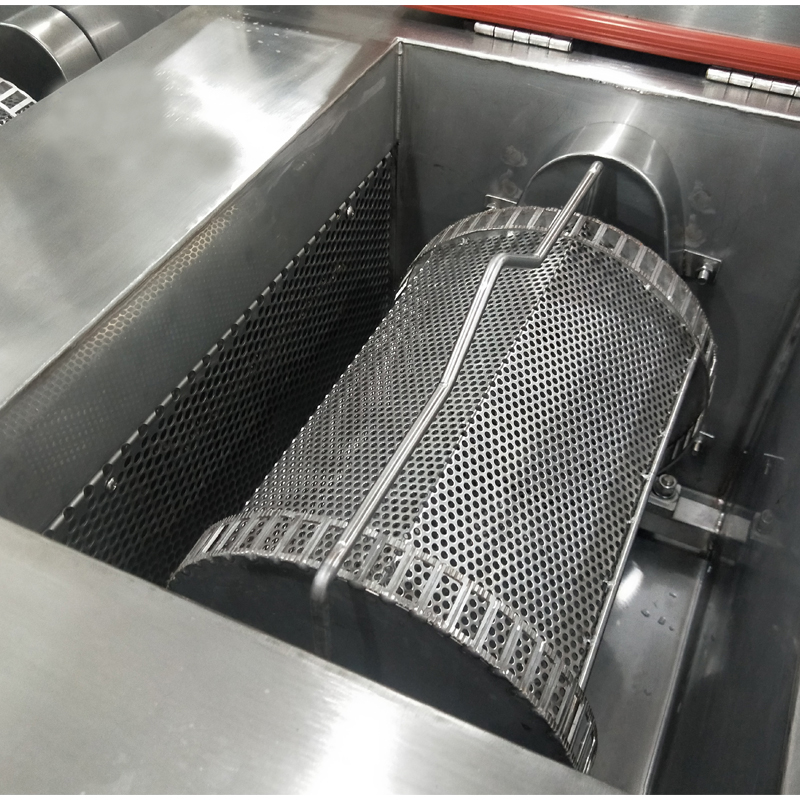

6. Function: industrial ultrasonic cleaning, rinsing and drying system with drum.
7. Voltage: 220V/380V/415V, 1 phase or 3 phases.
8. Packing: 1 unit / wooden case.
Need some help?
Contact Us
Lush Trees Tech Automatic Rotate Drum Ultrasonic Cleaning Machine 61L 28khz Parts Washer

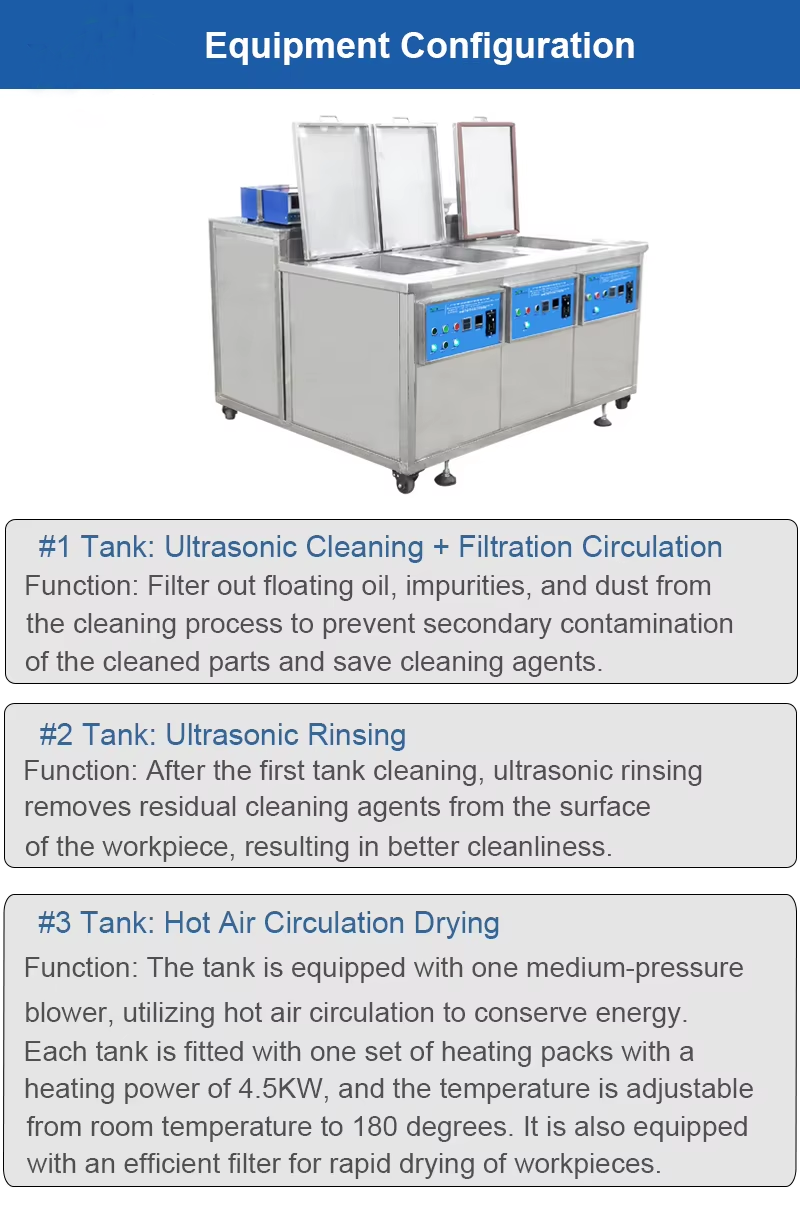

#1 Tank: Ultrasonic Cleaning + Filtration Circulation Function: Filter out floating oil, impurities, and dust fromthe cleaning process to prevent secondary contamination of the cleaned parts and save cleaning agents.
#2 Tank: Ultrasonic Rinsing Function: After the first tank cleaning, ultrasonic rinsing removes residual cleaning agents from the surface of the workpiece, resulting in better cleanliness.
#3 Tank: Hot Air Circulation Drying Function: The tank is equipped with one medium-pressure blower, utilizing hot air circulation to conserve energy. Each tank is fitted with one set of heating packs with a heating power of 4.5KW, and the temperature is adjustable from room temperature to 180 degrees. It is also equipped with an efficient filter for rapid drying of workpieces.
Please contact us via e-mail joannefu@lushtreestech.com to learn about our full scale capabilities to satisfy your application.
Additional information
| Weight | 200 kg |
|---|---|
| Dimensions | 210 × 65 × 95 cm |
