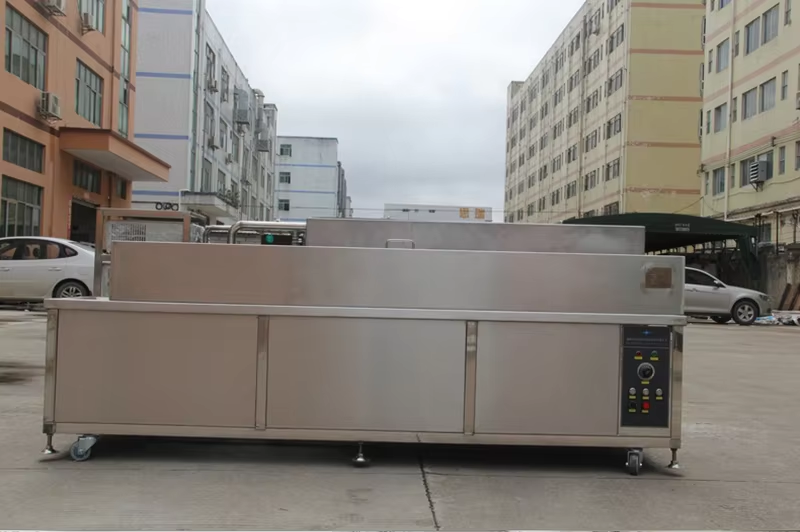

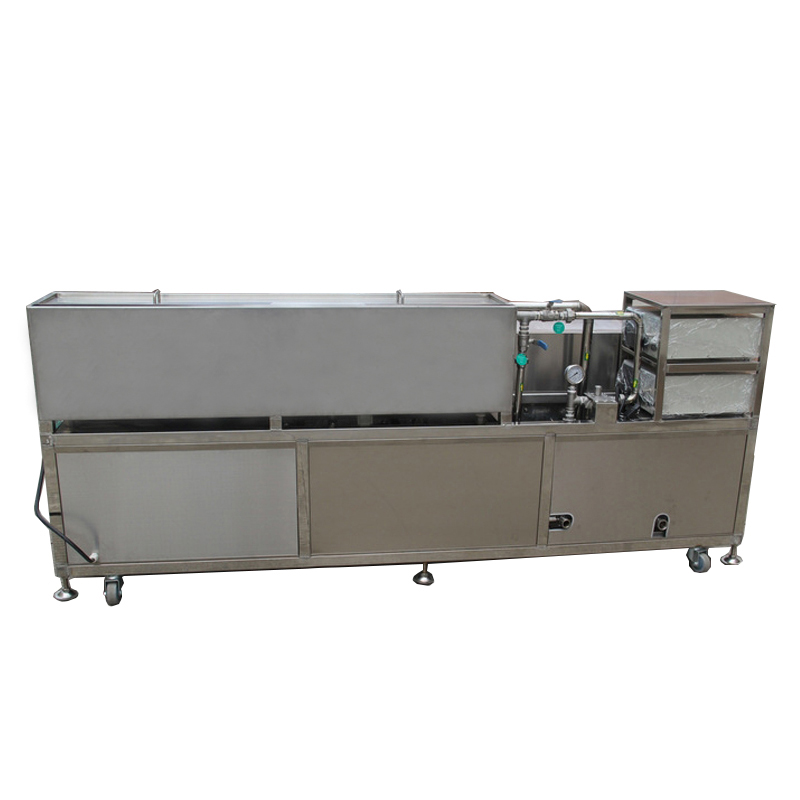

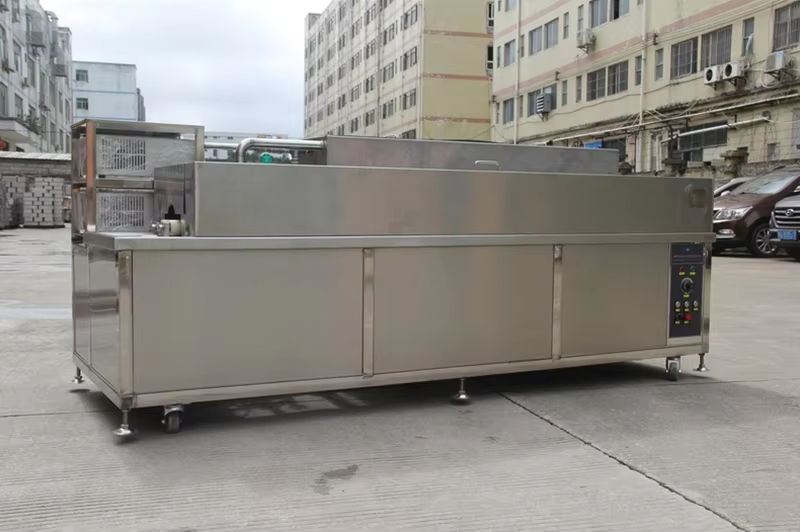

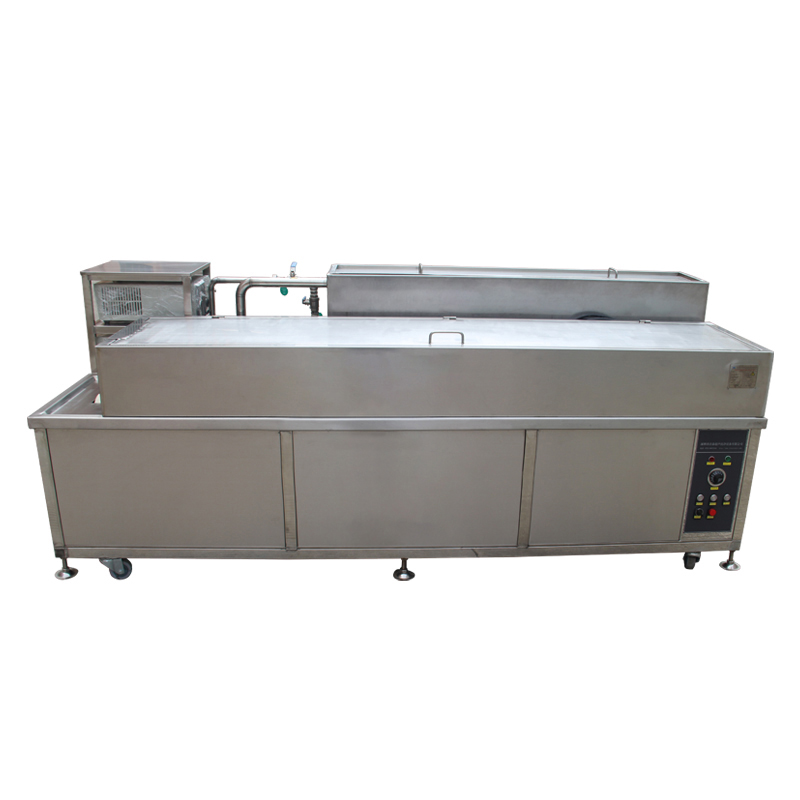

Anilox Roller Ultrasonic Cleaning Machine 256L Rotation Clean Ink Glue Oil
Original price was: $8,900.00.$7,000.00Current price is: $7,000.00.
1. Unit Size: L2570*W1300*H1100mm, tank Size: L1600*W400*H400mm, the tank body is made of SUS304 T2.0 steel.

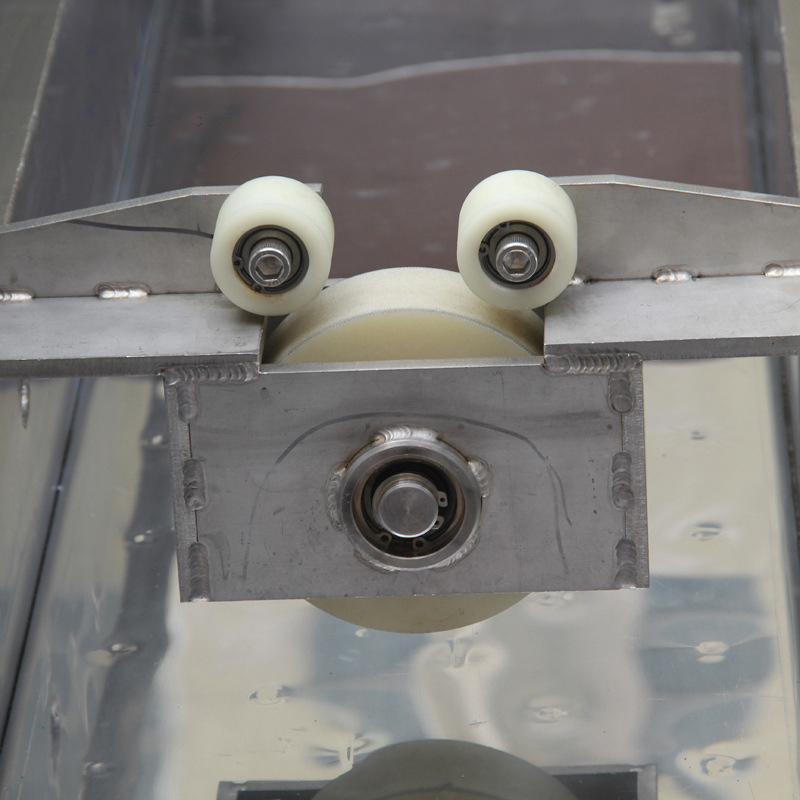

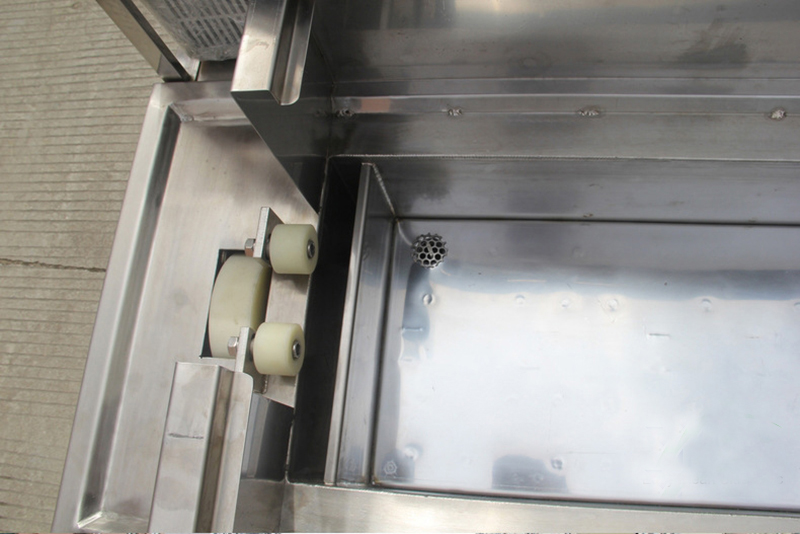

2. Rotating mechanism: the use of horizontal gear motor control rotating power roller, driven roller. Adjustable according to different workpiece lengths.
3. Ultrasonic system: 72pcs of ultrasonic transducers are installed evenly at the bottom of the tank body. Ultrasonic Power 3600W. Frequency: 40KHZ, equipped with a set of independent generator.

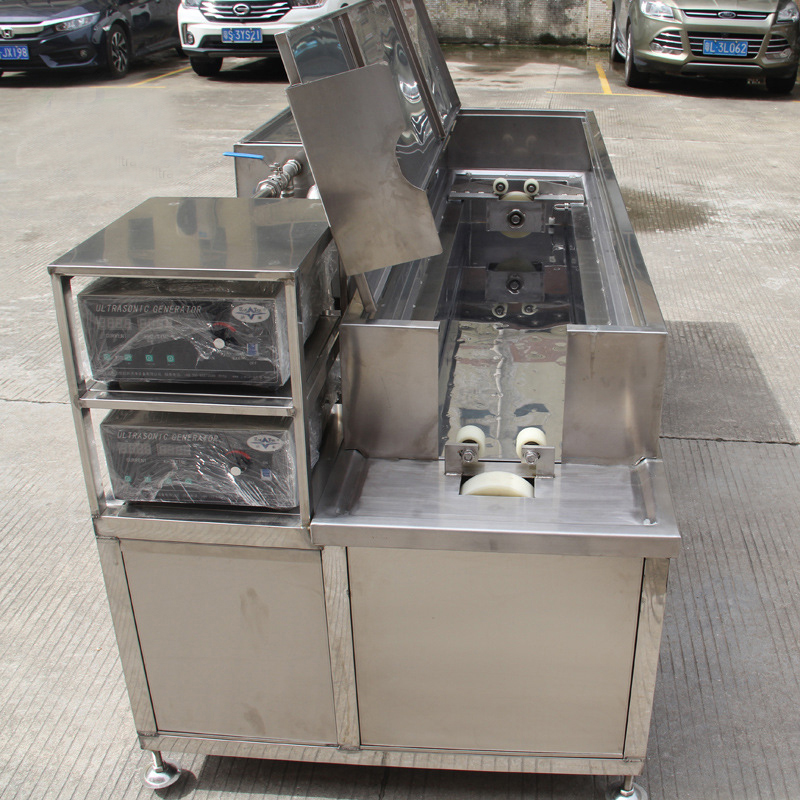

4. Manual door cover: manual door cover is configured above the tank body, and gas springs are installed at both ends of the door cover to facilitate opening.
5. Mechanical knob control, easy to operate. Heating power is 7.5KW.
6. Voltage: 220V/380V/415V, 1 phase or 3 phases. Packing: 1 unit / wooden case.
Need some help?
Contact Us
Lush Trees Tech Anilox Roller Ultrasonic Cleaning Machine 256L Rotation Clean Ink Glue Oil
What is the cleaning effect of different materials and different sizes of roller?
The cleaning effect of the anilox roller ultrasonic cleaning machine can be affected by the different materials and sizes of the anilox rollers. Generally, the cleaning effect is influenced by the following aspects:
Material: Anilox rollers made of different materials, such as rubber, metal, or other composite materials, have different surface characteristics and resistance, which may lead to varying cleaning effects. The cleaning machine needs to adjust the cleaning parameters and methods according to the different materials of the anilox rollers to achieve the best cleaning effect.
Size: Anilox rollers of different sizes may require different sizes of cleaning tanks and different ultrasonic power densities to ensure that the entire surface of the anilox roller receives thorough cleaning.
In general, modern anilox roller ultrasonic cleaning machines have a certain degree of flexibility and applicability, allowing for adjustment and optimization for anilox rollers of different materials and sizes to achieve the best cleaning effect. In practical use, operators need to set reasonable cleaning parameters based on the instruction manual and experience to ensure effective cleaning for anilox rollers of different materials and sizes.
Additional information
| Weight | 220 kg |
|---|---|
| Dimensions | 270 × 140 × 130 cm |
